SELECT A DIAGRAM

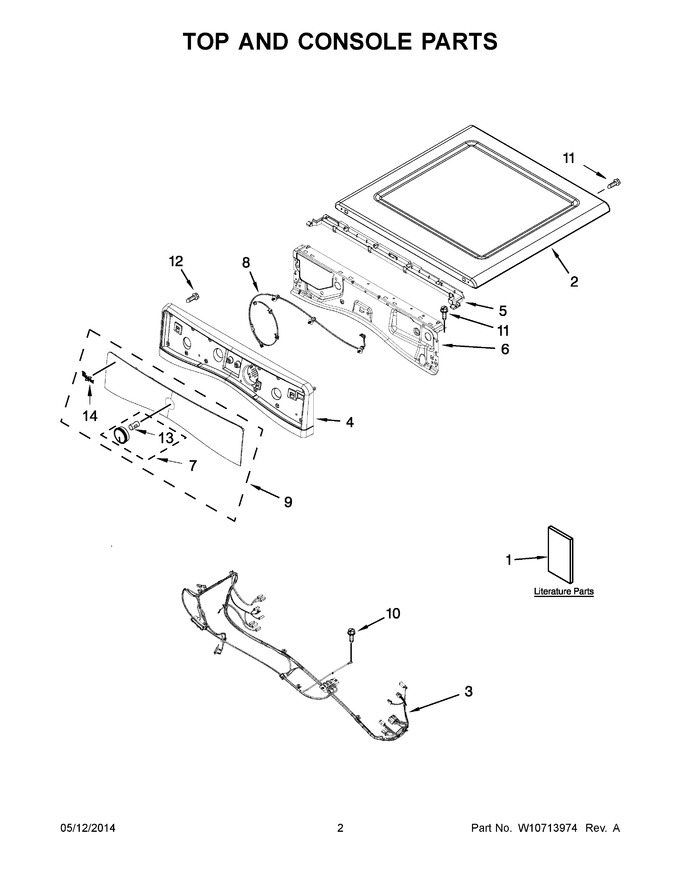

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10596019		Use And Care Guide		Appelez-nous	-
1	W10676165		Installation Instructions		Appelez-nous	-
1	W10504397		Wiring Diagram		Appelez-nous	-
1	W10678959		Quick Start Guide		Appelez-nous	-
1	W10606148		Tech Sheet		Appelez-nous	-
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 291.54
2	WPW10460919		Top (chrome Shadow)   (Replaces: W10460919)				$ 273.29
2	WPW10316282		Top (silver)   (Replaces: W10316282)				$ 311.57
3	W10526659		Harness, Main		Appelez-nous	-
4	WPW10446407		Panel, Console (white)   (Replaces: W10446407)				$ 168.91
4	WPW10463687		Panel, Console (chrome Shadow)   (Replaces: W10463687)				$ 264.65
4	W10504272		Panel, Console (silver)				$ 316.67
5	WPW10653575		Water Channel   (Replaces: W10636058)				$ 81.85
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 73.09
7	W10631128		Assembly, Timer Knob (silver)				$ 39.08
7	WPW10631127		Assembly, Timer Knob (grey)   (Replaces: W10631127)				$ 37.76
7	W10875909		Assembly, Timer Knob (white)   (Replaces: W10631126)			Immediately	$ 47.69
8	W10837344		Cable, User Interface   (Replaces: W10540653)				$ 30.25
9	W10433148		Iml Assembly (white)		Appelez-nous	-
9	W10750357		Iml Assembly (chrome Shadow)   (Replaces: W10433149)				$ 678.99
9	W10750358		Iml Assembly (mercury Silver)   (Replaces: W10433150)				$ 732.08
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
12	W10489172		Screw				$ 10.78
13	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
14	W10510982		Badge (grey)				$ 75.32
14	W11178521		Badge (white)   (Replaces: W10387117)			Immediately	$ 56.82

    View Diagram in Separate Window       Print Part List
