SELECT A DIAGRAM

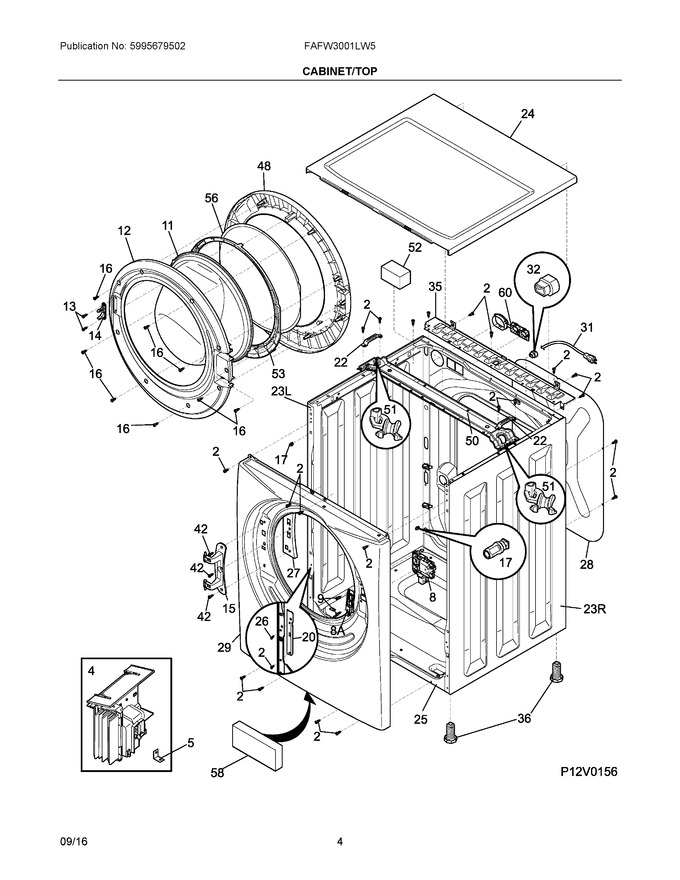

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	5304504863		Control Board, Motor   (Replaces: 134409905)			Immediately	$ 383.71
5	134522900		Bracket, Angle, Motor Control				$ 14.46
8	131763256		Door Lock/switch Assy   (Replaces: 131763202)			Immediately	$ 163.07
9	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
11	134366400		Panel, Door, Glass   (Replaces: 137441700)				$ 348.79
12	134550700		Frame, Inner Door, White			Immediately	$ 148.05
13	131302901		Screw, 10-16 X 0.750				$ 5.51
14	131763302		Striker, Door/lock, White   (Replaces: 134456600)			Immediately	$ 38.98
15	134550800		Hinge, Door, With Bushings				$ 141.75
16	131205300		Screw, 10-16 X 0.750			Immediately	$ 13.44
17	134638700		Clip, Assembly		Appelez-nous	-
20	134434901		Bracket, Ls Panel, Reinforcement				$ 43.73
22	134648500		Bracket-spring, Retainer				$ 19.69
24	137371700		Panel, Work Top, White				$ 270.11
25	134775501		Base, Washer		Appelez-nous	-
26	134521600		Screw, Hex Washer Head, M5 0.8 X 15				$ 2.63
27	134550900		Bracket, Hinge, Reinforcement				$ 67.47
28	134364300		Panel, Service Access, Rear				$ 54.39
29	137021811		Panel, Front, White				$ 290.54
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 98.00
32	5303209428		Bushing, Strain Relief				$ 18.90
35	134365100		Bracket, Top Support, Rear				$ 150.99
36	134548800		Leveling Leg, Screw, Plastic			Immediately	$ 33.55
42	137380600		Screw, M5 X, 0.8 X 17.50				$ 10.45
48	134550500		Panel, Outer Door, White				$ 232.31
50	134645600		Bracket, Tub Suspension		Appelez-nous	-
51	134655800		Protector, Tub Suspension, Spring Hook, (2)				$ 4.94
52	131931202		Dampener, Vibration, Foam				$ 19.28
53	134551300		Ring, Door Transition				$ 77.11
56	137577700		Glass, Outer Door Lens				$ 249.82
58	131800405		Insulation, Noise Absorber		Appelez-nous	-
60	134372000		Grommet, Dispenser, Back Panel				$ 33.86
23L	134775310		Panel, Left Side, White				$ 221.13
23R	134775210		Panel, Right Side, White				$ 232.73
8A	137279900		Vent, Door, Complete Assy				$ 52.76
NI	134889700		Clip, Hose, Drain, Rear-panel				$ 18.38
NI	134591500		Plug Assy, Shipping Holes, Back				$ 51.98
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 14.18
NI	134876501		Clip, Hose, Drain, Rear-panel   (Replaces: 134876500)				$ 22.05
NIA	134554500		Pad, Outer Door				$ 14.60
NIA	134434900		Bracket, Rs Panel, Reinforcement		Appelez-nous	-
NIA	134606800		Wiring Harness, Door Switch				$ 113.69
NIA	137021600		Bracket, Mounting, Left, Front Panel				$ 11.96
NIA	134547600		Wiring Harness, Motor Control				$ 70.09
NIA	134178901		Screw, 8-18ab X 0.455				$ 16.54
NIB	137021610		Bracket, Mounting, Right, Front Panel				$ 21.60

    View Diagram in Separate Window       Print Part List
