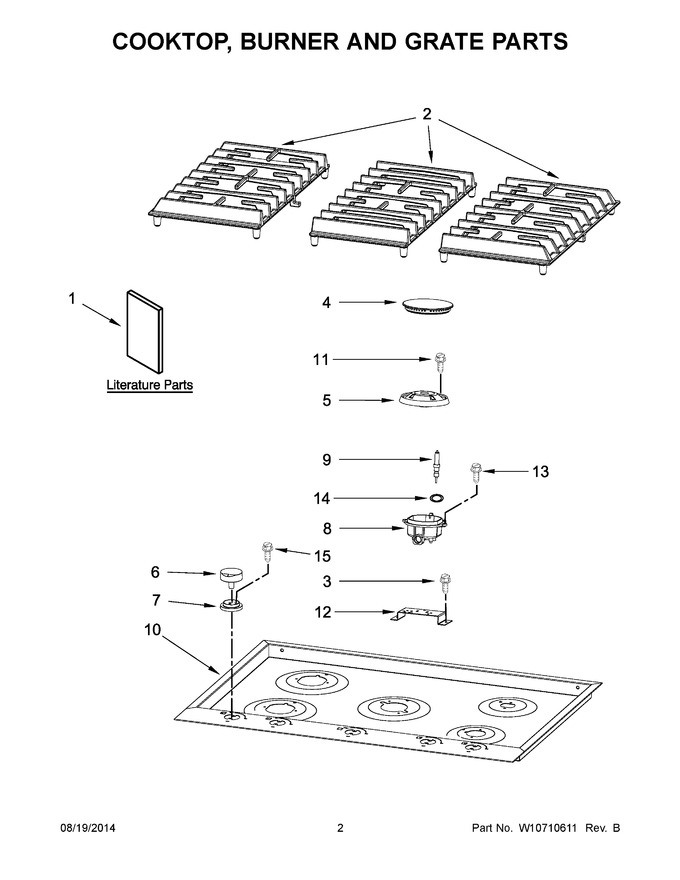

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10676382 | Use And Care Guide |
|
- | |||||
| 2 | W10689386 | Grate, Burner (center) |
|
Immediately | $ 440.41 | ||||
| 3 | W10626012 | Screw |
|
- | |||||
| 4 | W10691232 | Cap, Burner (black (large) (left Front, Left Rear, Right Front)) |
|
Immediately | $ 173.80 | ||||
| 5 | W10691284 | Base, Burner (large (left Front, Left Rear, Right Front)) |
|
Immediately | $ 175.85 | ||||
| 6 | WPW10620810 | Knob (stainless) (Replaces: W10620810) |
|
$ 182.49 | |||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 163.99 | ||||
| 8 | WPW10571493 | Holder Orifice (170mm) (left Rear) (Replaces: W10571493) |
|
$ 85.56 | |||||
| 9 | WPW10571489 | Electrode (450mm) (right Rear) (Replaces: W10692363) |
|
$ 61.48 | |||||
| 10 | W10691681 | Cooktop, Main |
|
- | |||||
| 11 | W11676624 | Screw, Burner Base ( Large And Medium Burners ) (Replaces: W10626016) |
|
Immediately | $ 16.19 | ||||
| 12 | W10618476 | Bracket, Orifice Holder (single Burner) |
|
- | |||||
| 13 | W10626015 | Screw, Injector Holder |
|
$ 17.14 | |||||
| 14 | W10571930 | Clip, Electrode |
|
Immediately | $ 25.33 | ||||
| 15 | W10637348 | Screw |
|
Immediately | $ 30.69 | ||||
| 11A | W10626017 | Screw, Burner Base ( Small Burner ) |
|
Immediately | $ 20.18 | ||||
| 12A | W10691683 | Bracket, Orifice Holder (dual Burner) |
|
- | |||||
| 1A | W10676381 | Installation Instructions |
|
- | |||||
| 1B | W10686623 | Lp Conversion Instructions |
|
- | |||||
| 2A | W10689385 | Grate, Burner (side) |
|
$ 628.09 | |||||
| 4A | W10691282 | Cap, Burner (black (dual) (center)) |
|
$ 160.59 | |||||
| 4B | W10691229 | Cap, Burner (black (small) (right Rear)) |
|
$ 106.25 | |||||
| 5A | W10691430 | Base, Burner (dual (center)) |
|
$ 305.49 | |||||
| 5B | W10691285 | Base, Burner (small (right Rear)) |
|
$ 142.38 | |||||
| 8A | W10691684 | Holder, Orifice (s2) (right Rear) |
|
$ 97.73 | |||||
| 8B | W10759294 | Holder, Orifice (195 Mm) (center) (Replaces: W10691686) |
|
$ 312.22 | |||||
| 8C | WPW10571492 | Holder, Orifice (155 Mm) (left Front, Right Front) (Replaces: W10571492) |
|
$ 86.40 | |||||
| 9A | W10692365 | Electrode Dual (360mm) (center) |
|
$ 88.24 | |||||
| 9B | W10617810 | Electrode (250mm) (right Front) |
|
Immediately | $ 81.63 | ||||
| 9C | W10692364 | Electrode (500mm) (left Rear) |
|
$ 143.30 | |||||
| 9D | WPW10571488 | Electrode (360mm) (left Front) (Replaces: W10692361) |
|
$ 56.53 |
