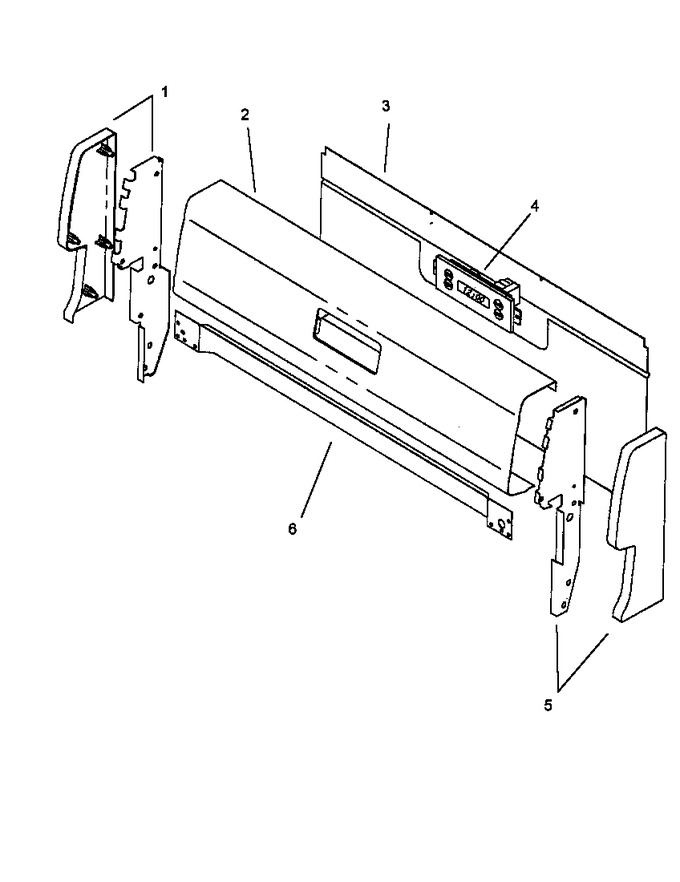

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y06567005 | End Cap, Bkgd L.h. |
|
- | |||||
| 2 | 07708807L | Pnl, Bkgd Gas |
|
- | |||||
| 3 | Y06559600 | Cover, Bkgd Wire |
|
- | |||||
| 4 | 07707902 | Timer, Electronic |
|
- | |||||
| 5 | Y06567004 | End Cap, Bkgd R.h. |
|
- | |||||
| 6 | Y06559120B | Tim, Lower Bkgd (black) |
|
- | |||||
| NI | Y07660700 | Nut,zip Twist |
|
- | |||||
| NI | 06568500 | Shield, Heat |
|
- | |||||
| NI | Y07712300 | Screw, No.10 X 3/8`` |
|
- |
