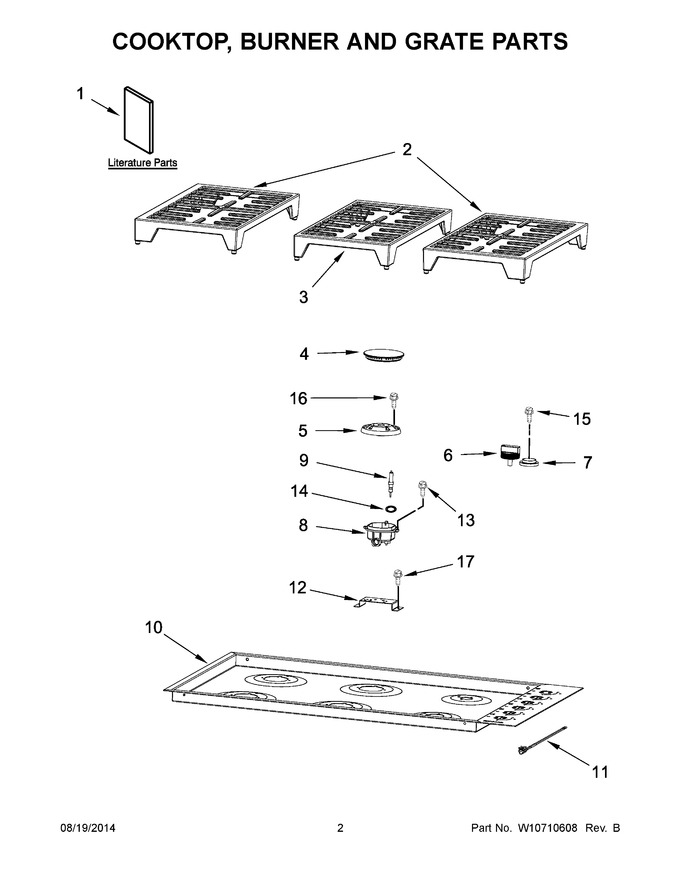

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10588275		Instructions, Installation		Appelez-nous	-
2	W11677639		Grate, Burner (side) (pro-line)   (Replaces: W10617811)				$ 479.59
3	WPW10617813		Grate, Burner (center) (pro-line)   (Replaces: W10617813)				$ 465.92
4	WPW10617815		Cap, Burner (black (large) (left Front, Left Rear, Center))   (Replaces: W10617815)			Immediately	$ 290.39
5	W11197492		Base, Burner (large (left Front, Left Rear, Center))   (Replaces: W10617818)			Immediately	$ 142.30
6	W10620811		Knob (pro-line)				$ 100.99
7	W10618500		Bezel, Knob (stainless)			Immediately	$ 163.99
8	WPW10571491		Holder Orifice (132mm) (right Front)   (Replaces: W10571491)				$ 75.12
9	W10617808		Electrode (395mm) (center Front, Center Rear)				$ 96.03
10	WPW10618505		Cooktop, Main   (Replaces: W10618505)				$ 2,508.44
11	W11807280		Assembly, Indicator Light (led)   (Replaces: W10617592)				$ 240.70
12	W10618476		Bracket, Orifice Holder		Appelez-nous	-
13	W10626015		Screw, Injector Holder				$ 17.14
14	W10571930		Clip, Electrode			Immediately	$ 25.33
15	W10637348		Screw			Immediately	$ 30.69
16	W11676624		Screw, Burner Base ( Large And Medium Burners )   (Replaces: W10626016)			Immediately	$ 16.19
17	W10626012		Screw		Appelez-nous	-
16A	W10626017		Screw, Burner Base ( Small Burner )			Immediately	$ 20.18
1A	W10620795		Diagram, Wiring		Appelez-nous	-
1B	W10588274		Guide, Use & Care		Appelez-nous	-
1C	W10588276		Lp Conversion Instructions		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2A	WPW10617812		Grate, Burner (side) (stainless Model)   (Replaces: W10617812)				$ 491.49
3A	WPW10617814		Grate, Burner (center) (stainless Model)   (Replaces: W10617814)				$ 392.74
4A	W10617816		Cap, Burner (black (medium) (right Front))				$ 80.54
4B	W10617817		Cap, Burner (black (small) (right Rear))				$ 190.46
5A	W10617819		Base, Burner (medium (right Front))				$ 93.27
5B	W10617820		Base, Burner (small (right Rear))				$ 85.77
6A	WPW10620810		Knob (stainless)   (Replaces: W10620810)				$ 182.49
8A	W10618475		Holder Orifice (110mm) (right Rear)				$ 81.05
8B	WPW10571493		Holder Orifice (170mm) (left Rear, Center Rear, Center Front)   (Replaces: W10571493)				$ 85.56
8C	W10618474		Holder Orifice (193mm) (left Front)				$ 129.28
9A	W10617809		Electrode (695mm) (left Front, Left Rear)				$ 139.20
9B	W10617810		Electrode (250mm) (right Front)			Immediately	$ 81.63
9C	W10623868		Electrode (250mm) (right Rear)				$ 78.91
