View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

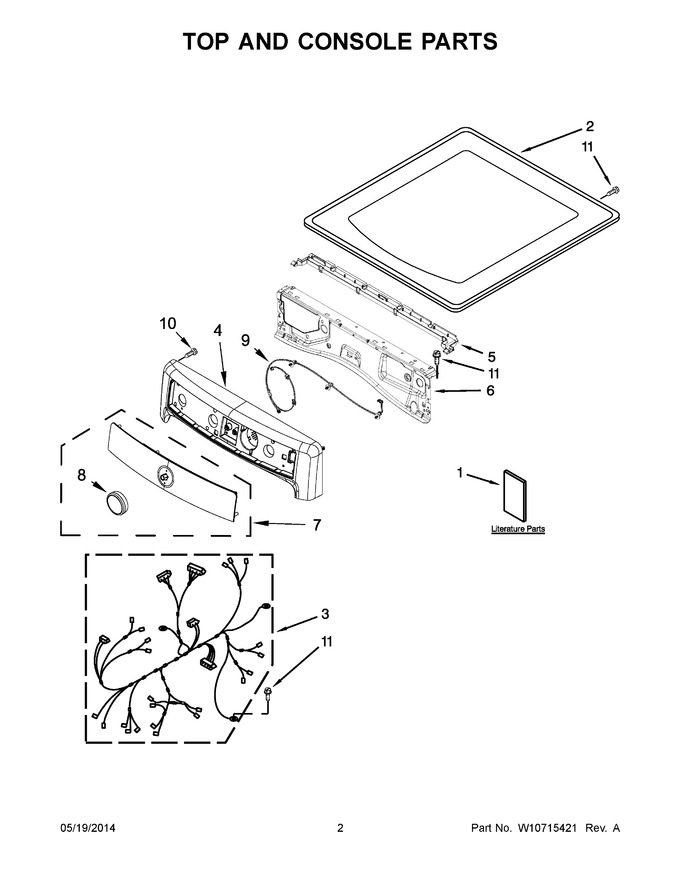

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10606147 | Tech Sheet |
|
- | |||||
| 1 | W10676165 | Installation Instructions |
|
- | |||||
| 1 | W10504397 | Wiring Diagram |
|
- | |||||
| 1 | W10678962 | Quick Start Guide |
|
- | |||||
| 1 | W10596022 | Use And Care Guide |
|
- | |||||
| 2 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10526659 | Harness, Main |
|
- | |||||
| 4 | W10861611 | Console Assembly (chrome Shadow) (Replaces: W10433206) |
|
$ 354.92 | |||||
| 4 | WPW10391555 | Console Assembly (white) (Replaces: W10391555) |
|
$ 390.20 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10433023 | Assembly, Iml (chrome Shadow) |
|
- | |||||
| 7 | W10433019 | Assembly, Iml (white) |
|
$ 209.02 | |||||
| 8 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 53.94 | |||||
| 9 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 10 | W10489172 | Screw |
|
$ 11.98 | |||||
| 11 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 |
