| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

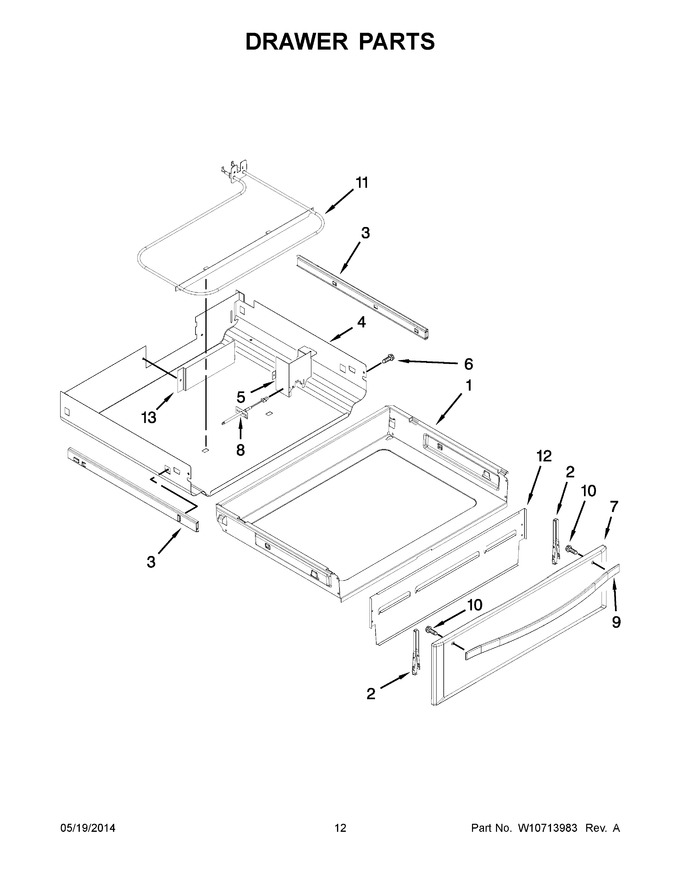

| 1 | W10813962 | Drawer, Storage (Replaces: W10663433) |
|
Immediately | $ 138.15 | ||||
| 2 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 120.16 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 3 | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 | ||||
| 4 | W10634260 | Enclosure, Warming |
|
Immediately | $ 209.02 | ||||
| 5 | W10634259 | Cover, Wire |
|
$ 87.84 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11334144 | Panel, Drawer Front (stainless) (Replaces: W10330059) |
|
$ 213.13 | |||||
| 8 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 275.58 | |||||
| 9 | WPW10289076 | Handle, Drawer (stainless) (Replaces: W10289076) |
|
$ 334.61 | |||||
| 10 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 11 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 132.08 | |||||
| 12 | W10324878 | Panel, Inner |
|
- | |||||
| 13 | W10325438 | Cover, Panel |
|
$ 156.99 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
