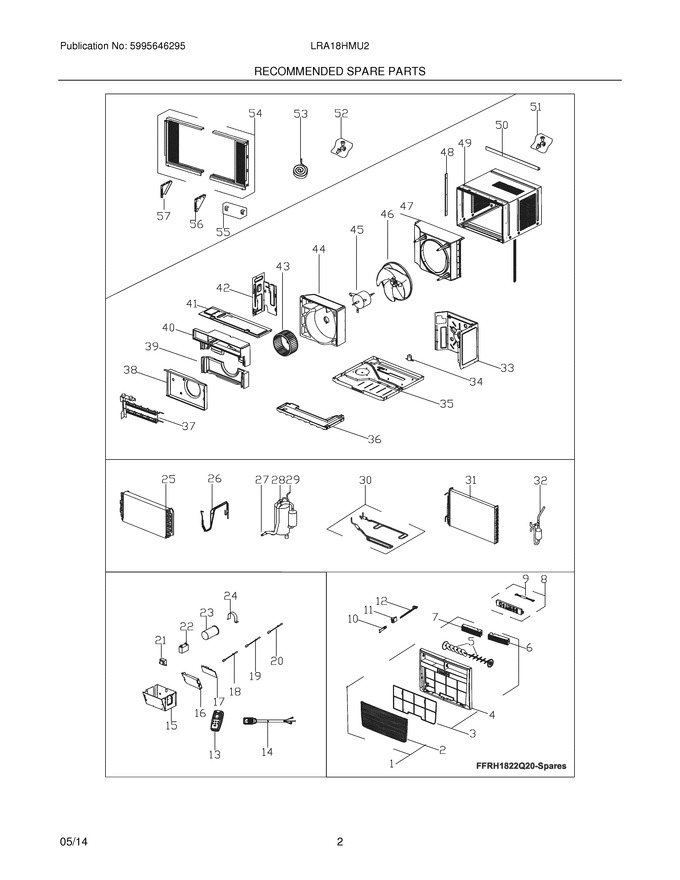

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304476956 | · Panel,front Grille ,tilt-out |
|
- | |||||
| 4 | 5304483070 | · Panel,frame ,front |
|
- | |||||
| 15 | 5304495623 | Control Box |
|
- | |||||
| 16 | 5304495029 | Holder,mounting Plate ,control |
|
- | |||||
| 24 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 33 | 5304495630 | Bulkhead,partition ,front/right |
|
- | |||||
| 35 | 5304476324 | Base,unit Chassis |
|
- | |||||
| 36 | 5304472530 | Tray,drip Pan |
|
- | |||||
| 38 | 5304495739 | Shield,heater Housing |
|
- | |||||
| 39 | 5304495740 | Scroll,blower Housing ,bottom |
|
- | |||||
| 40 | 5304496322 | Scroll,blower Housing ,top |
|
- | |||||
| 41 | 5304495632 | Cover,blower Scroll ,front |
|
- | |||||
| 42 | 5304495633 | Bulkhead,partition ,front/left |
|
- | |||||
| 44 | 5304483068 | Scroll,blower Housing ,rear |
|
- | |||||
| 47 | 5304495634 | Shroud,condenser/fan |
|
- | |||||
| 48 | 5304487567 | Retainer,shutter ,cabinet Sides |
|
- | |||||
| 49 | 5304486012 | Cabinet,wrapper/sleeve |
|
- | |||||
| 50 | 5304476333 | Rail,shutter Track ,top Angle |
|
- | |||||
| 51 | 5304472546 | Screw Kit,top Rail Mount |
|
- | |||||
| 52 | 5304476266 | Hardware,mounting ,screws/locks |
|
- | |||||
| 53 | 5304472366 | Seal Kit,foam ,sash & Rails |
|
- | |||||
| 54 | 5304476267 | Window Filler Kit,slider Panels ,accordion |
|
- | |||||
| 55 | 5304472360 | Bracket,sill Angle |
|
- | |||||
| 56 | 5304482508 | Bracket,mounting ,right Window |
|
- | |||||
| 57 | 5304482509 | Bracket,mounting ,left Window |
|
- | |||||
| F1 | 5304496323 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304495010 | Handle,vent Control |
|
- | |||||
| F11 | 5304529409 | Link,lever/vent Door ,detente (Replaces: 5304476359) |
|
- | |||||
| F12 | 5304476950 | Door,vent Control ,with Lever |
|
- | |||||
| F13 | 5304534748 | Remote Control,transmitter (Replaces: 5304492053) |
|
- | |||||
| F14 | 5304476312 | Power Cord,electric ,lcdi |
|
- | |||||
| F17 | 5304496321 | Pc Board,main ,control/power |
|
- | |||||
| F18 | 5304504724 | Sensor,ambient Temp ,thermistor (Replaces: 5304487548) |
|
$ 19.85 | |||||
| F19 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F20 | 5304476316 | Sensor,temperature ,discharge Air ,daht |
|
- | |||||
| F21 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F22 | 5304521130 | Capacitor,fan Motor (Replaces: 5304482883) |
|
- | |||||
| F23 | 5304475736 | Capacitor,compressor |
|
- | |||||
| F25 | 5304495737 | Evaporator |
|
- | |||||
| F26 | 5304476318 | · Tube,capillary |
|
- | |||||
| F27 | 5304495654 | Tube,suction |
|
- | |||||
| F28 | 5304475735 | Compressor |
|
- | |||||
| F29 | 5304495656 | Tube,discharge |
|
- | |||||
| F3 | 5304476957 | · Filter,air |
|
- | |||||
| F30 | 5304486013 | Tube,condensate Evap ,drain Pan |
|
- | |||||
| F31 | 5304495738 | Condenser |
|
- | |||||
| F32 | 5304476257 | Dryer-filter |
|
- | |||||
| F34 | 5304476323 | Valve,drain |
|
- | |||||
| F37 | 5304472338 | Heater Assembly,electric |
|
- | |||||
| F43 | 5304472346 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F45 | 5304529416 | Motor,fan (Replaces: 5304483059) |
|
- | |||||
| F46 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F5 | 5304476959 | · Louver,vertical |
|
- | |||||
| F6 | 5304496324 | · Louver,horizontal ,right |
|
- | |||||
| F7 | 5304496325 | · Louver,horizontal ,left |
|
- | |||||
| F8 | 5304496261 | Pc Board,display/input |
|
- | |||||
| F9 | 5304495009 | · Wire,connector ,pc Boards |
|
- |
