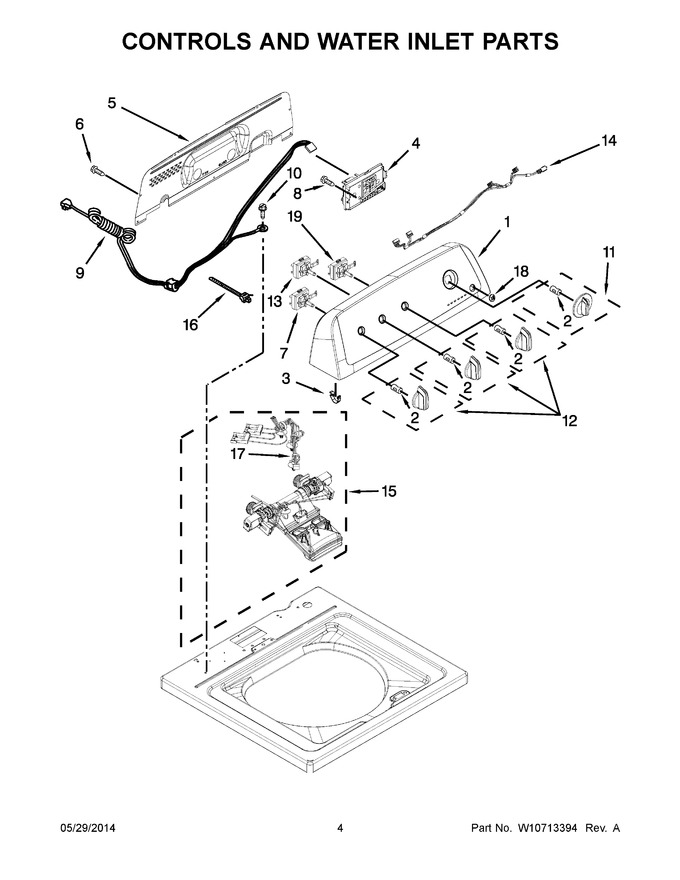

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10420446		Panel, Console   (Replaces: W10420446)				$ 315.46
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W10671339		Control Unit Assembly, Machine And Motor				$ 247.92
5	W10409320		Panel, Console Rear Cover				$ 237.41
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
7	W10859568		Switch, Water Level   (Replaces: W10414411)			Immediately	$ 169.49
8	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
9	WPW10525192		Cord, Power   (Replaces: W10525192)				$ 146.72
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	WPW10711289		Knob, Timer (white)   (Replaces: W10453946)			Immediately	$ 7.50
12	WPW10453947		Knob, Control (white)   (Replaces: W10453947)				$ 49.28
13	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
14	W10491753		Harness, Upper		Appelez-nous	-
15	WPW10683603		Inlet Assembly, Water   (Replaces: W10683680)			Immediately	$ 84.60
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10876654		Harness, Valve   (Replaces: W10684972)				$ 175.43
18	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 68.40
19	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 197.20
