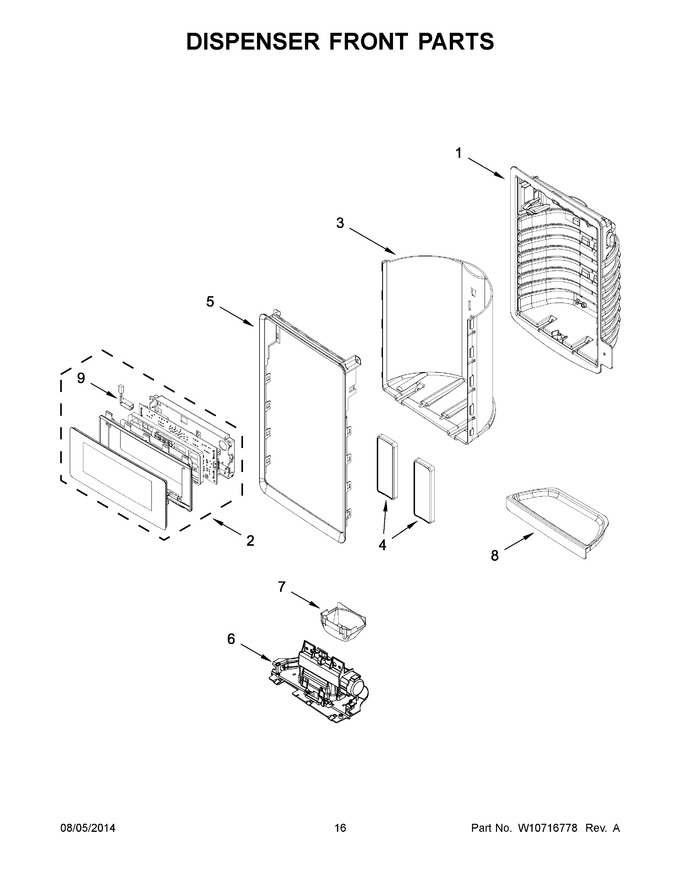

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10878995		Assembly, User Interface (black)   (Replaces: W10705284)				$ 433.14
3	W10520867		Wall, Dispenser False (white)				$ 92.40
4	WPW10436679		Assembly, Pad (white)   (Replaces: W10436679)				$ 87.47
5	W10587907		Ring, Trim (white)				$ 29.12
6	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 157.84
7	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
8	W10322872		Tray, Drip (white)		Appelez-nous	-
9	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
2A	W10705283		Assembly, User Interface (stainless)		Appelez-nous	-
3A	W10520868		Wall, Dispenser False (black)		Appelez-nous	-
3B	W10520869		Wall, Dispenser False (grey)				$ 121.46
4A	W10436677		Assembly, Pad (black)		Appelez-nous	-
4B	W10436678		Assembly, Pad (stainless)		Appelez-nous	-
5A	W10322864		Ring, Trim (black)		Appelez-nous	-
5B	W10587910		Ring, Trim (stainless)				$ 133.26
8A	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 58.53
8B	W10410105		Tray, Drip (grey)				$ 104.16

    View Diagram in Separate Window       Print Part List
