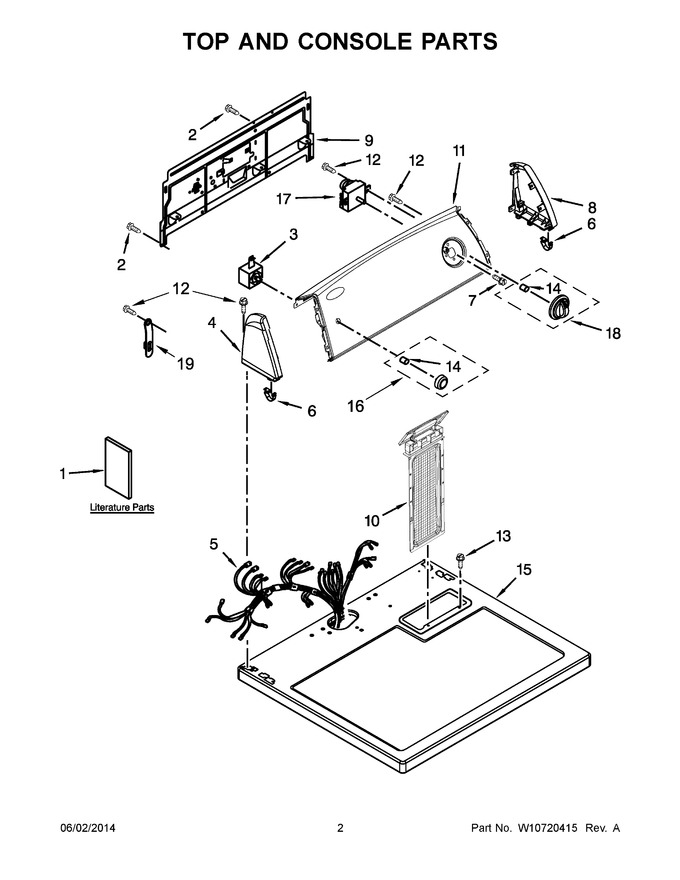

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629448		Installation Instructions		Appelez-nous	-
1	W10629452		Owners Manual		Appelez-nous	-
1	W10649094		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	W10640699		Harness, Wiring		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
7	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	W10121161		Panel, Rear Console		Appelez-nous	-
10	W10120998		Screen, Lint   (Replaces: W10596627)				$ 82.95
11	W10598016		Assembly, Panel		Appelez-nous	-
12	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
13	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	8559781		Top (white)		Appelez-nous	-
16	W10034770		Assembly, Push-to-start Knob (white/metallic)		Appelez-nous	-
17	WPW10185972		Timer Assembly (60 Hz.)   (Replaces: W10185972)			Immediately	$ 141.85
18	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
