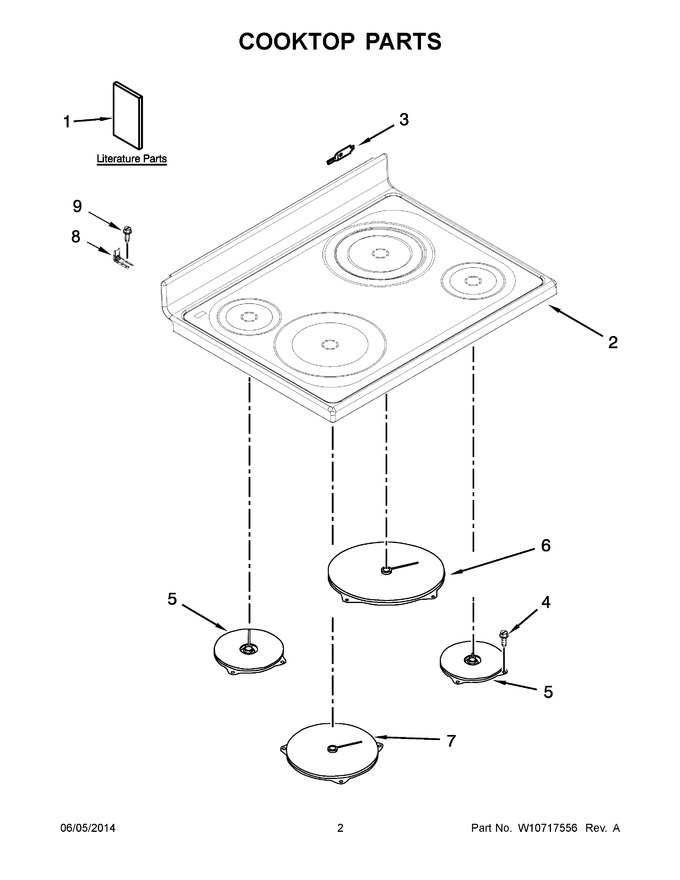

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	W10401392		Cooktop (black)		Appelez-nous	-
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
5	WPW10410580		Hotplate (right Front And Left Rear)   (Replaces: W10410580)				$ 255.85
6	WPW10410579		Hotplate (right Rear)   (Replaces: W10410579)				$ 270.34
7	WPW10410578		Hotplate (left Front)   (Replaces: W10410578)				$ 308.23
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1B	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1C	W10524729		Use And Care Guide		Appelez-nous	-
1D	W10509193		Tech Sheet, English		Appelez-nous	-
1E	W10509194		Tech Sheet, French		Appelez-nous	-
1F	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1G	W10400065		Guide, Quick Start (french)		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10629310		Harness, Main				$ 133.70
NI	W10349694		Harness, Cooktop				$ 123.66
NI	W10349733		Harness, Sensor				$ 135.67
NI	W10324946		Harness, Wire (drawer)				$ 29.03
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11226497		Cord, Power   (Replaces: W10233363)			Immediately	$ 72.99
