SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

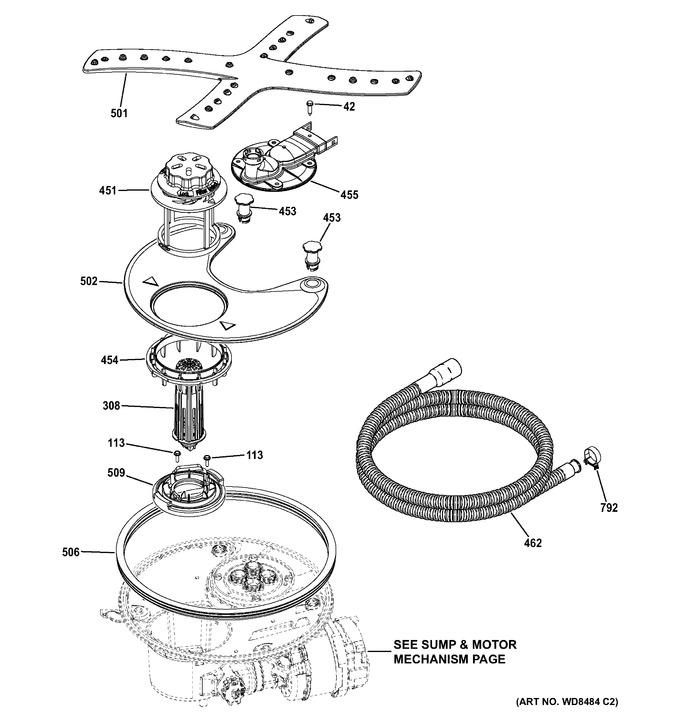

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
308	WG04F04857		Switch Flood Asm   (Replaces: WD21X20204)			Immediately	$ 100.20
451	WD12X20107		Filter Manual Asm		Appelez-nous	-
453	WD24X10057		Vent Filter		Appelez-nous	-
454	WD12X10419		Adaptor Filter		Appelez-nous	-
455	WG04F09348		Adapter Conduit Asm   (Replaces: WD18X20202)				$ 77.58
462	WG04F04609		Drain Tube Asm   (Replaces: WD24X10062)			Immediately	$ 42.93
501	WD22X20181		Arm Spray Lower Asm		Appelez-nous	-
502	WD22X10093		Filter Coarse Ss		Appelez-nous	-
506	WG04L05874		Gasket Sump Manifold   (Replaces: WD08X20105)				$ 66.14
509	WD12X10421		Plate Floor Manual		Appelez-nous	-
792	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 12.71
	WG04A02635		Kit Door Asm Outer				$ 217.35
	WG04A02646		Active Diverter Asm Kit				$ 152.60
	WG04A03389		Ss Tub Gasket & Hinge Kit   (Replaces: WG04A02934)				$ 174.51
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04A05239		Module Detergent   (Replaces: WG04F04754)			Immediately	$ 108.73
	WG04F04857		Switch Flood Asm			Immediately	$ 100.20
	WG04F05028		Bezel & Cvr Console Asm				$ 505.20
	WG04A03757		Control Board Main Good   (Replaces: WG04F05128)				$ 249.69
	WG04F09808		Valve Water Asm   (Replaces: WG04F05891)			Immediately	$ 79.72
	WG04F06915		Spacer Tub Front				$ 21.08
	WW01F03176		Module Detergent   (Replaces: WG04L03557)			Immediately	$ 96.30
	WG04F12108		Pump Drain Asm   (Replaces: WG04L04531)			Immediately	$ 208.41

    View Diagram in Separate Window       Print Part List
