SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

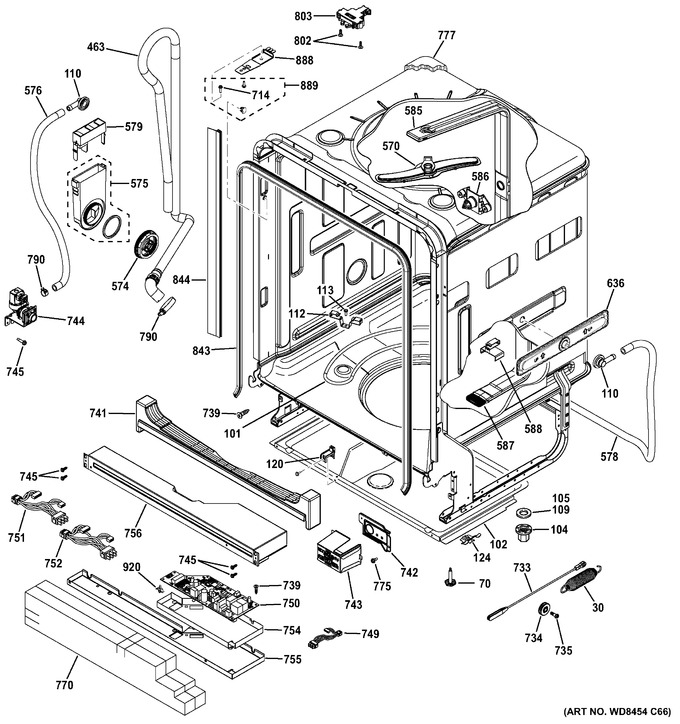

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WG04A02197		Spring Door   (Replaces: WD03X20316)			Immediately	$ 23.53
70	WG01A01600		Screw Leveling   (Replaces: WD12X10417)			Immediately	$ 9.53
101	WG04A05153		Element Heating Asm   (Replaces: WD05X10015)			Immediately	$ 173.90
102	WD18X20461		Pan Leak		Appelez-nous	-
104	WD01X10070		Nut Tower Heater		Appelez-nous	-
110	WD22X20538		Fill Elbow		Appelez-nous	-
112	WD01X20120		Support Heater Ss		Appelez-nous	-
124	WD18X20464		Clip Leak Pan		Appelez-nous	-
463	WG04F12155		Hose Loop Drain High   (Replaces: WD24X10067)			Immediately	$ 57.27
570	WG03A02167		Arm Spray Upper Asm   (Replaces: WD22X10088)			Immediately	$ 98.12
574	WD01X20738		Nut Water Inlet		Appelez-nous	-
575	WD12X10181		Funnel And Gasket Asm		Appelez-nous	-
576	WD24X10064		Hose Fill		Appelez-nous	-
578	WD21X20339		Hose Fill		Appelez-nous	-
579	WD12X20835		Cap Fill Funnel		Appelez-nous	-
585	WG04F06987		Conduit Main Asm   (Replaces: WD12X20117)				$ 60.44
586	WD12X20118		Docking Port Ss		Appelez-nous	-
587	WG04F06950		Seal Conduit   (Replaces: WD08X10098)				$ 9.53
588	WD12X21675		Shield Conduit		Appelez-nous	-
636	WG04L03242		Side Blaster Asm   (Replaces: WD22X20198)				$ 34.94
714	WG04A01237		Scr 8-18 B Hxw .480 S   (Replaces: WD02X10160)				$ 3.97
733	WG04F04517		Cable Asm Pulley   (Replaces: WD01X10569)			Immediately	$ 19.06
734	WD16X10013		Pulley Hinge		Appelez-nous	-
735	WD02X10206		Pulley Screw		Appelez-nous	-
739	WZ5X158		Screw Ground		Appelez-nous	-
741	WD01X20121		Spacer Tub Front		Appelez-nous	-
742	WD12X10411		Bracket Junction Box		Appelez-nous	-
743	WG04L01578		Cover Junction Box   (Replaces: WD12X10412)			Immediately	$ 44.46
744	WG04F09808		Valve Water Asm   (Replaces: WD15X20326)			Immediately	$ 79.72
745	WD02X10221		Scr 10-32 Tt Hxw 14/25 S		Appelez-nous	-
749	WD21X10541		Harness Asm Jumper		Appelez-nous	-
750	WG04A03757		Control Board Main Good   (Replaces: WD21X10532)				$ 249.69
751	WD21X20739		Harness Asm Ac		Appelez-nous	-
752	WD21X20186		Harness Asm Dc		Appelez-nous	-
754	WD01X10583		Shield Dielectric		Appelez-nous	-
755	WD30X10044		Control Box Bottom		Appelez-nous	-
756	WD27X10390		Control Box Top		Appelez-nous	-
770	WD01X10629		Barrier Toekick		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hexw S		Appelez-nous	-
777	WG04F06762		Insulation Tub Blanket   (Replaces: WD01X20187)				$ 131.95
790	WH1X2036		Clamp Hose		Appelez-nous	-
802	WR01X10065		Screw 10-32 Gxtt Flp 595		Appelez-nous	-
803	WG04F04726		Latch Tub Side Standard   (Replaces: WD21X10490)			Immediately	$ 69.95
843	WG04A04003		Gasket Tub   (Replaces: WD08X20675)			Immediately	$ 192.73
844	WD08X20207		Trim Tub		Appelez-nous	-
844	WD08X20208		Trim Tub		Appelez-nous	-
844	WD08X20209		Trim Tub		Appelez-nous	-
888	WG04A03280		Bracket Countertop   (Replaces: WD01X10598)			Immediately	$ 30.76
889	WG04A01079		Ct Screw Asm   (Replaces: WD35X10383)			Immediately	$ 33.35
920	WD01X21975		Clip Control Board		Appelez-nous	-
	WG04A01461		Kit Door Inner Asm   (Replaces: WG04A02903)			Immediately	$ 185.86
	WG04A03389		Joint De La Cuve & Ens Charniﾈre   (Replaces: WG04A02934)				$ 174.51
	WG04L01959		Arm Hinge Asm				$ 61.06
	WG04A03030		Porte Interieure Fuite Kit				$ 236.72
	WW01F03176		Detergent Module Kit   (Replaces: WG04A03376)			Immediately	$ 96.30
	WG04F10218		Kit Svc Ui Top Logic   (Replaces: WG04A03452)				$ 199.24
	WG04F04517		Cable Asm Pulley			Immediately	$ 19.06
	WG04F04671		Hose Elbow Drain			Immediately	$ 76.30
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04F05029		Bezel & Cvr Console Asm				$ 534.36
	WG04F05111		Console Top Control				$ 27.00
	WG04A03757		Control Board Main Good   (Replaces: WG04F05128)				$ 249.69
	WG04F05451		Housing Bottom			Immediately	$ 11.12
	WG04A05239		Module Detergent   (Replaces: WG04F09253)			Immediately	$ 108.73
	WG04L01958		Arm Hinge Asm (right Side)				$ 61.06
	WG04A01134		Attache			Immediately	$ 21.85
	WW01A00722		Bride   (Replaces: WG04A02196)				$ 12.71
	WG04A01338		Pompe				$ 200.56
	WG04A02197		Spring Door			Immediately	$ 23.53
	WG04F10218		Kit Svc Ui Top Logic   (Replaces: WG04A02632)				$ 199.24

    View Diagram in Separate Window       Print Part List
