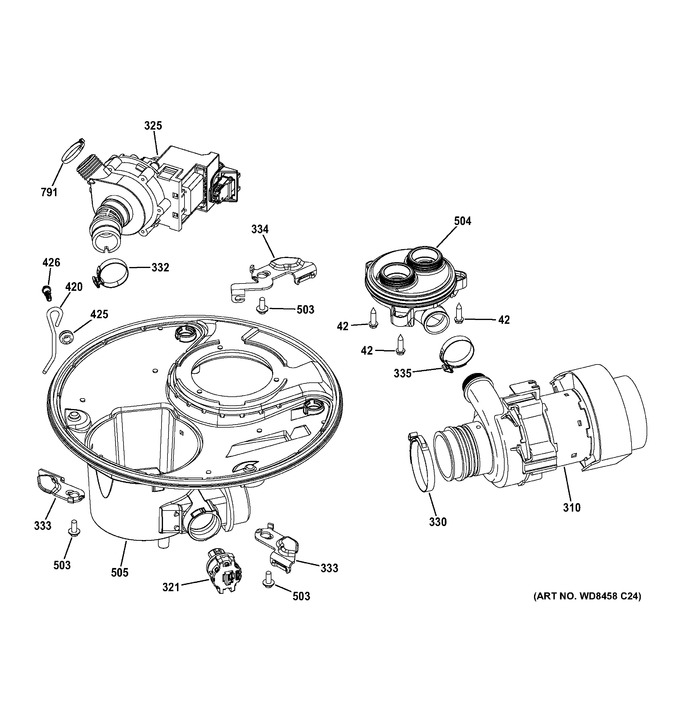

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD35X10385 | Wash Pump Kit |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 325 | WG04F12108 | Pump Drain Kit (Replaces: WD35X20553) |
|
Immediately | $ 208.41 | ||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F05595 | Sensor Turbidity Asm |
|
$ 50.92 | ||||||
| WG04F05005 | Valve Water Asm |
|
Immediately | $ 87.23 | |||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F10705 | P1 Pump Drain Kit (Replaces: WG04F04654) |
|
$ 291.00 | ||||||
| WG04F04555 | Conduit Mid Asm |
|
$ 47.15 | ||||||
| WG04A03393 | Board Main Control (Replaces: WG04F04510) |
|
$ 222.56 | ||||||
| WG04A03393 | Kit Main Board |
|
$ 222.56 | ||||||
| WG04A01461 | Kit Door Inner Asm (Replaces: WG04A02903) |
|
Immediately | $ 185.86 | |||||
| WG04F12108 | Pump Drain Kit (Replaces: WG04A02642) |
|
Immediately | $ 208.41 | |||||
| WG04A04452 | Support (Replaces: WG04A02188) |
|
Immediately | $ 15.88 | |||||
| WG04A04452 | Support (Replaces: WG04A02174) |
|
Immediately | $ 15.88 | |||||
| WG04A01338 | Pompe |
|
$ 200.56 | ||||||
| WG01A01600 | Screw Leveling (Replaces: WG04A01265) |
|
Immediately | $ 9.53 | |||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04A01085 | Diverter Asm Kit |
|
Immediately | $ 66.80 | |||||
| WG04A03280 | Bracket Countertop (Replaces: WG04A01050) |
|
Immediately | $ 30.76 | |||||
| WG04A01160 | Kit-spray Arm Service |
|
$ 83.84 | ||||||
| WG04L03757 | Rack Lower Asm Complete |
|
$ 113.56 | ||||||
| WG04L03747 | Lid Basket Side |
|
$ 4.20 | ||||||
| WG04L03119 | Door Gasket |
|
$ 14.55 | ||||||
| WG04L03089 | Funnel Fill |
|
$ 17.03 | ||||||
| WG04L02091 | Couvercle |
|
Immediately | $ 58.52 | |||||
| WG04A04452 | Couvercle (Replaces: WG04L02090) |
|
Immediately | $ 15.88 | |||||
| WG04A04447 | Roulette Panier Du Bas (Replaces: WG04L01875) |
|
Immediately | $ 4.52 | |||||
| WG04L01693 | Gasket Fill Funnel |
|
$ 13.61 | ||||||
| WG04L01578 | Cover Junction Box |
|
Immediately | $ 44.46 | |||||
| WG03A02167 | Arm Spray Upper Asm (Replaces: WG04L01519) |
|
Immediately | $ 98.12 | |||||
| WG04F07752 | Panel Control Asm |
|
$ 374.05 | ||||||
| WG04F06765 | Conduit Main Asm |
|
$ 60.44 | ||||||
| WG04F06738 | Isolant De La Cuve |
|
$ 75.19 | ||||||
| WG04F10705 | P1 Pump Drain Kit (Replaces: WG04F06725) |
|
$ 291.00 | ||||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F05889) |
|
Immediately | $ 76.30 |
