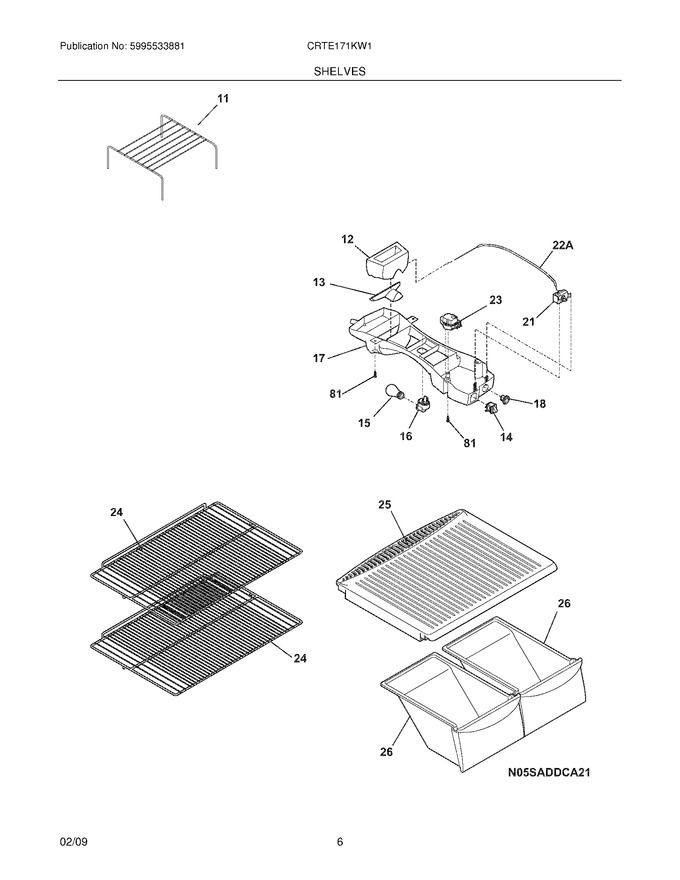

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 97.83 | ||||
| 12 | 241542001 | Diffuser,air ,top |
|
Immediately | $ 82.69 | ||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light |
|
$ 80.75 | |||||
| 17 | 240368002 | Control Box |
|
$ 149.14 | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240360906 | Shelf,sliding ,wire (Replaces: 240360902) |
|
Immediately | $ 110.39 | ||||
| 25 | 240364706 | Cover-crisper Pan |
|
- | |||||
| 26 | 240364501 | Pan,crisper ,(2) |
|
Immediately | $ 176.06 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 10.11 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer-defrost (Replaces: 241621501) |
|
Immediately | $ 31.33 | ||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 241613797 | Energy Guide |
|
- | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 18.90 | |||||
| NI | 240568606 | Seal (Replaces: 240568607) |
|
$ 14.18 |
