SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Griddle Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

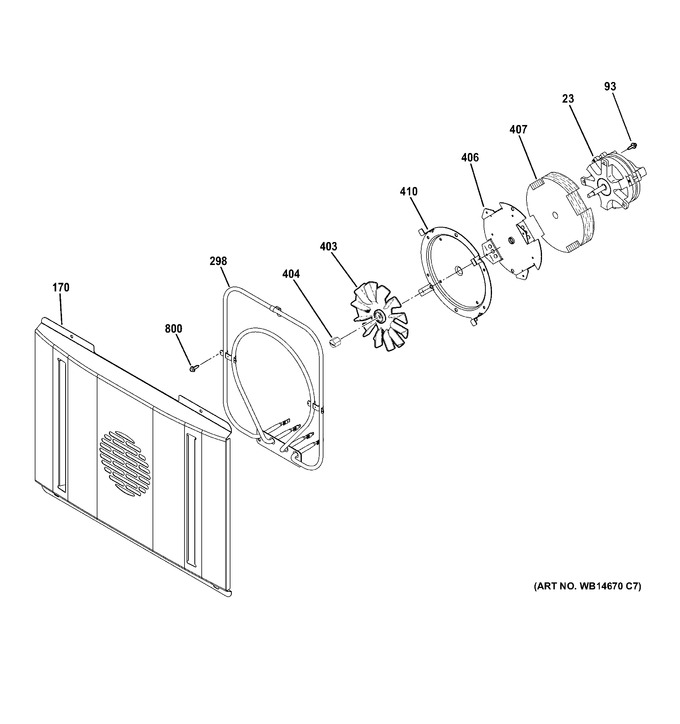

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 152.39
93	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.57
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
298	WB44T10058		Element Convect		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 32.88
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 8.55
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
	WS01A00367		Monogram Badge				$ 12.40
	WS01L07926		Glass Door Monogram				$ 104.59
	WG02F04968		Harness Burner Box, Monogram				$ 208.34
	WG02L03812		Liner Oven Door Asm, Monogram				$ 130.74
	WS01L05061		Panel Oven Door				$ 166.21
	WS01L02132		Toe Kick Top				$ 84.93
	WS01L02115		Toe Kick Bottom				$ 113.31
	WS01L00235		Hinge Door Left, Monogram				$ 143.06
	WS01L00224		Hinge Door Rt, Monogram				$ 143.06
	WS01F03813		Blower Tangential, Monogram				$ 449.74
	WS01F02728		Transformer, Monogram				$ 169.78
	WS01F02053		Modulo Ignicion				$ 83.43
	WS01F01582		Switch Sail Asm, Monogram				$ 133.77

    View Diagram in Separate Window       Print Part List
