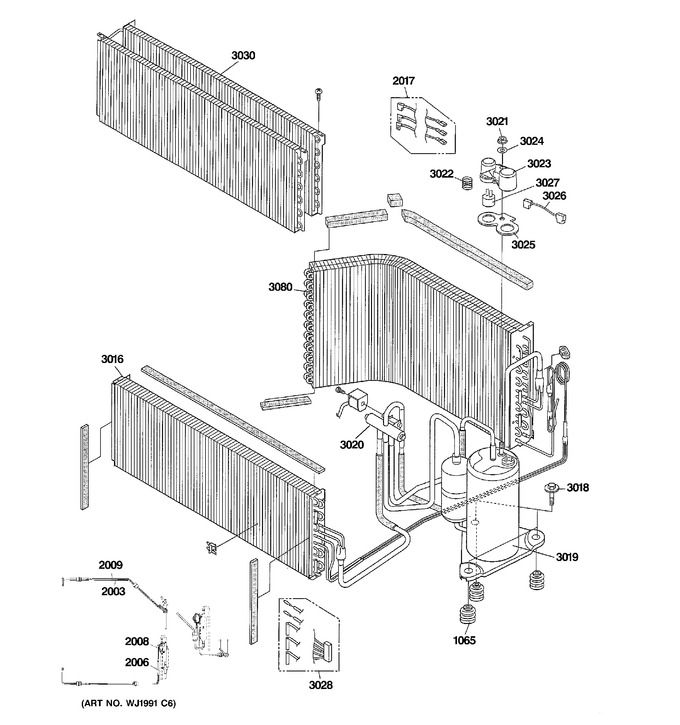

1 - Grille, Heater & Base Pan Parts
2 - Control Parts
3 - Motor & Chassis Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1065 | WJ01X10002 | Compressor C Cushion |
|
- | |||||
| 2003 | WP56X10037 | Capillaly Tube |
|
- | |||||
| 2006 | WP56X10011 | Lead Tube |
|
- | |||||
| 2008 | WP56X10039 | Capillary Tube |
|
- | |||||
| 2009 | WP56X10036 | Capillary Tube |
|
- | |||||
| 2017 | WP27X10064 | Comp. Wiring-rechi |
|
- | |||||
| 3016 | WP87X10049 | Evaporator Asm |
|
- | |||||
| 3018 | WJ01X10045 | Stud Bolt |
|
- | |||||
| 3019 | WP98X10031 | Compressor |
|
- | |||||
| 3020 | WP58X10006 | Reverse Valve |
|
- | |||||
| 3021 | WP01X10015 | Special Nut |
|
- | |||||
| 3022 | WJ02X10001 | Protecto R Spring |
|
- | |||||
| 3023 | WJ79X10003 | Terminal Cover |
|
- | |||||
| 3024 | WJ01X10003 | Gasket Was Her |
|
- | |||||
| 3025 | WJ43X10003 | Terminal Gasket |
|
- | |||||
| 3026 | WJ27X10001 | Lead Wire |
|
- | |||||
| 3027 | WP23X10029 | Protector |
|
- | |||||
| 3028 | WP27X10072 | Thermistor |
|
- | |||||
| 3030 | WP56X10035 | Heat-pipe Ass'y |
|
- | |||||
| 3080 | WP88X10096 | Condenser Ass'y(7k) |
|
- |
