1 - Grille, Heater & Base Pan Parts

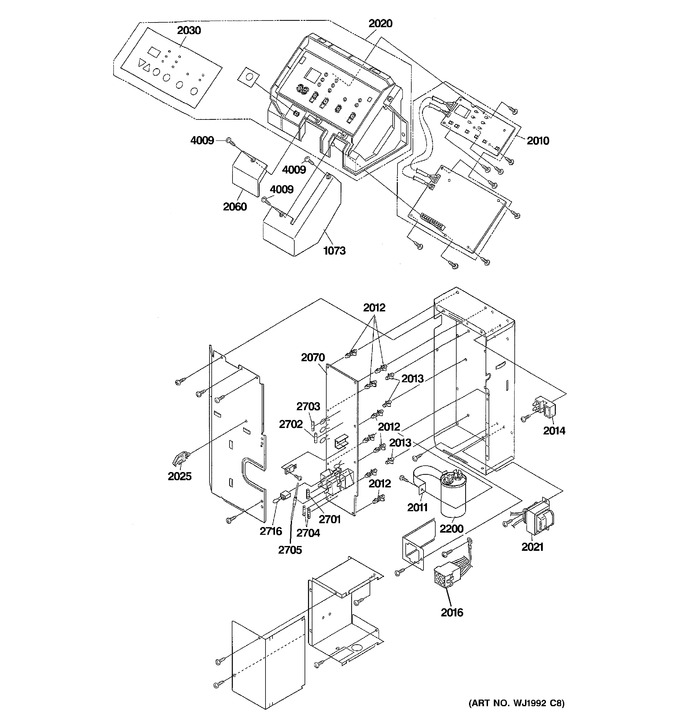

2 - Control Parts
3 - Motor & Chassis Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1073 | WP01X10038 | Cover |
|
- | |||||
| 2010 | WP29X10018 | Main Pwb Asm |
|
- | |||||
| 2011 | WP03X10031 | Capacitor Clamp |
|
- | |||||
| 2012 | WP03X10022 | Spacer |
|
- | |||||
| 2013 | WP03X10023 | Spacer |
|
- | |||||
| 2014 | WP29X10014 | Terminal Board |
|
- | |||||
| 2016 | WP03X10024 | Connector |
|
- | |||||
| 2020 | WP07X10013 | Control Base Assy |
|
- | |||||
| 2021 | WP27X10068 | Transformer |
|
- | |||||
| 2025 | WP03X10025 | Wire Holder |
|
- | |||||
| 2030 | WP07X10008 | Control Sheet |
|
- | |||||
| 2060 | WP01X10037 | Cover |
|
- | |||||
| 2070 | WP29X10016 | Drive Pwb-k |
|
- | |||||
| 2200 | WJ20X10132 | Running Capacitor |
|
$ 81.37 | |||||
| 2701 | WP23X10003 | Fuse |
|
- | |||||
| 2702 | WP23X10026 | Fuse |
|
- | |||||
| 2703 | WP23X10027 | Fuse |
|
- | |||||
| 2704 | WP23X10028 | Fuse |
|
- | |||||
| 2705 | WP23X10042 | Fuse, Inline |
|
$ 21.99 | |||||
| 2716 | WP28X10019 | Varistor |
|
- | |||||
| 4009 | WP01X10021 | Special Screw |
|
- |
