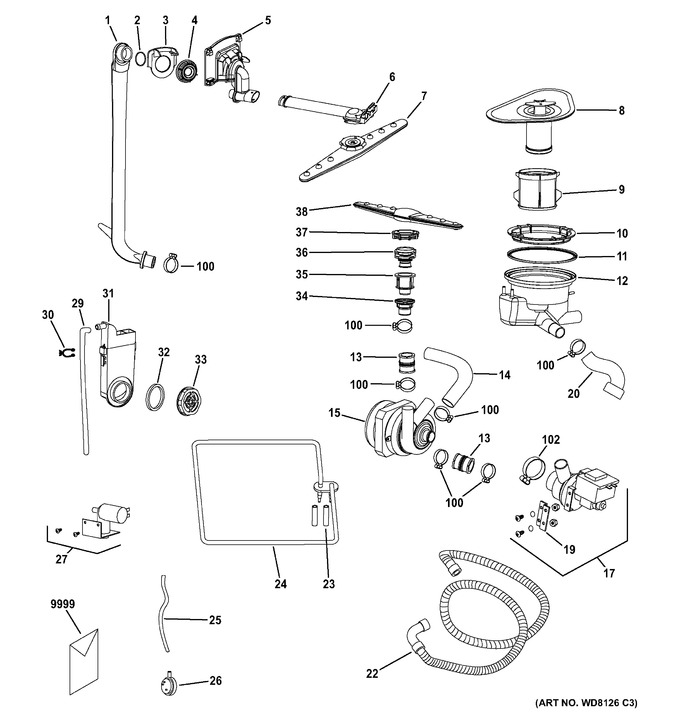

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper & Lower Rack Assemblies
4 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WG04F10565 | Main Conduit (Replaces: WD12X10164) |
|
$ 63.62 | |||||
| 2 | WG04F10740 | O Ring (Replaces: WD01X10240) |
|
Immediately | $ 19.06 | ||||
| 3 | WD01X10241 | Guide Casing |
|
- | |||||
| 4 | WD01X10242 | Ring Nut W/gasket |
|
- | |||||
| 5 | WD12X10165 | Main Conduit-upper Spray |
|
- | |||||
| 6 | WD12X10166 | Conduit - Upper Spray |
|
- | |||||
| 7 | WD22X10039 | Upper Spray Asm & Gasket |
|
- | |||||
| 8 | WD12X10167 | Filter Asm |
|
- | |||||
| 9 | WD12X10168 | Microfilter |
|
- | |||||
| 10 | WG04A00935 | Sump Clamping Nut (Replaces: WD12X10169) |
|
$ 15.88 | |||||
| 11 | WD08X10046 | Sump Gasket |
|
- | |||||
| 12 | WD18X10027 | Sump |
|
- | |||||
| 13 | WD18X10028 | Connecting Duct |
|
- | |||||
| 14 | WG04A01205 | Pump Hose & Clamps (Replaces: WD24X10037) |
|
$ 19.06 | |||||
| 15 | WD26X10020 | Motor Pump Asm |
|
- | |||||
| 17 | WD26X10021 | Drain Pump Assy |
|
- | |||||
| 19 | WD01X10252 | Mounting Plate |
|
- | |||||
| 20 | WD01X10377 | Connector Boot Sump-pump |
|
- | |||||
| 22 | WD24X10029 | Drain Hose |
|
- | |||||
| 23 | WD01X10253 | Insulating Sleeve |
|
- | |||||
| 24 | WD05X10007 | Heating Element Asm |
|
- | |||||
| 25 | WD24X10030 | Hose - Pressure Switch |
|
Immediately | $ 19.93 | ||||
| 26 | WD21X10191 | Pressure Switch |
|
- | |||||
| 27 | WG02F02963 | Water Valve (Replaces: WD15X10009) |
|
$ 76.29 | |||||
| 29 | WD24X10031 | Fill Hose |
|
- | |||||
| 30 | WD01X10251 | Clamp - Squeeze |
|
- | |||||
| 31 | WD12X10170 | Fill Funnel |
|
- | |||||
| 32 | WD01X10243 | O Ring |
|
- | |||||
| 33 | WD18X10029 | Ring Nut/vent Cap |
|
- | |||||
| 34 | WD01X10244 | Ring Nut - Manifold Supp |
|
- | |||||
| 35 | WD18X10030 | Lower Manifold Support |
|
- | |||||
| 36 | WD18X10031 | Lower Spray Shift |
|
- | |||||
| 37 | WD01X10245 | Connecting Ring Nut |
|
- | |||||
| 38 | WD12X10171 | Lower Spray Asm |
|
- | |||||
| 100 | WD01X10322 | Clamp 15/16 - 1-1/2 |
|
- | |||||
| 102 | WD01X10323 | Clamp 1-3/16 - 1-3/4 |
|
- | |||||
| 9999 | 31-30566 | Pm Instruction Install |
|
- | |||||
| 9999 | 31-30448 | Mini Manual |
|
- | |||||
| 9999 | 49-5950 | 49-5950-1 |
|
- |
