SELECT A DIAGRAM

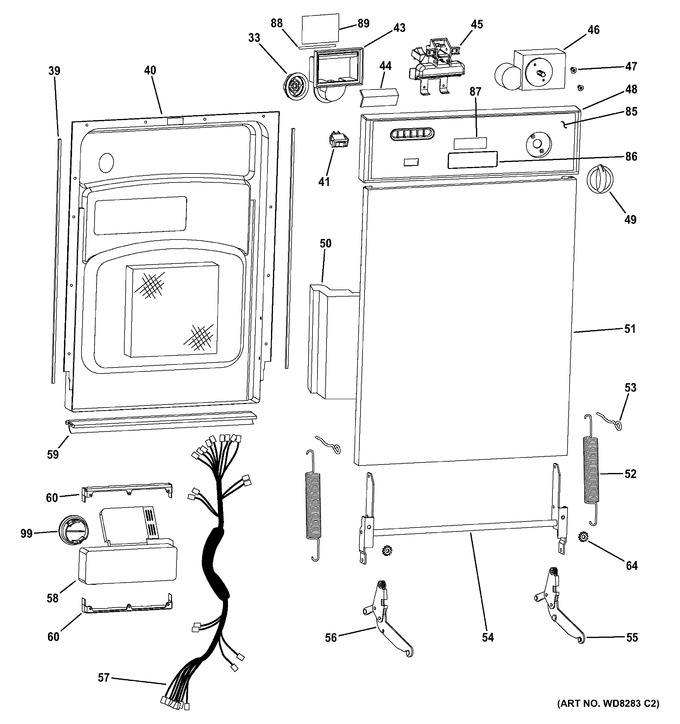

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper & Lower Rack Assemblies


4 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WD18X10029		Ring Nut/vent Cap		Appelez-nous	-
39	WD08X10047		Edge Guard Wh		Appelez-nous	-
40	WD31X10074		Inner Door		Appelez-nous	-
41	WD21X10192		Switch - Heat Dry Wh		Appelez-nous	-
43	WD12X10172		Vent Tube		Appelez-nous	-
44	WD24X10034		Vent Back Board		Appelez-nous	-
45	WD13X10028		Handle/latch Asm Wh		Appelez-nous	-
46	WD21X10193		Timer		Appelez-nous	-
47	WD02X10119		Screw		Appelez-nous	-
48	WD34X10926		Control Panel Wh		Appelez-nous	-
49	WD09X10053		Knob Wh		Appelez-nous	-
50	WD01X10246		Door Foam		Appelez-nous	-
51	WD31X10075		Outer Door Wh		Appelez-nous	-
52	WD03X10024		Door Hinge Spring		Appelez-nous	-
53	WD01X10250		Door Hinge Pin		Appelez-nous	-
54	WD14X10018		Hinge Assembly		Appelez-nous	-
55	WD14X10020		Right Hinge Asm		Appelez-nous	-
56	WD14X10019		Left Hinge Asm		Appelez-nous	-
57	WD01X10248		Harness Asm		Appelez-nous	-
58	WD12X10174		Detergent Dispenser		Appelez-nous	-
59	WD08X10050		Door Gasket Asm		Appelez-nous	-
60	WG04A00035		Bracket Detergent Displa   (Replaces: WD01X10207)				$ 6.35
64	WD01X10254		Star Washer		Appelez-nous	-
85	WD34X11182		Insert - Control Pnl Wh		Appelez-nous	-
86	WD13X10044		Latch Cover Ww		Appelez-nous	-
87	WD13X10043		Latch Cover Insert Ww		Appelez-nous	-
88	WD08X10073		Vent Gasket		Appelez-nous	-
89	WD08X10074		Vent Gasket		Appelez-nous	-
99	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70

    View Diagram in Separate Window       Print Part List
