SELECT A DIAGRAM

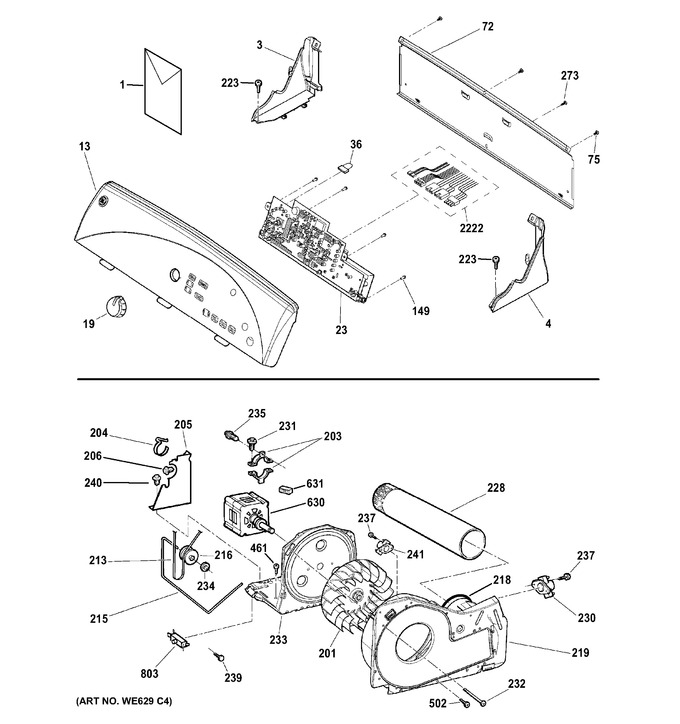

1 - Backsplash, Blower & Drive Assembly
2 - Front Panel & Door
3 - Cabinet & Top Panel
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16335 | Pm Wiring Diagram |
|
- | |||||
| 1 | 31-16739 | Installation Instruction |
|
- | |||||
| 1 | 49-90508 | Use & Care |
|
- | |||||
| 3 | WE19M1474 | End Cap Lh Wh |
|
- | |||||
| 4 | WE19M1473 | End Cap Rh Wh |
|
- | |||||
| 13 | WE19M1727 | Backsplash Asm |
|
- | |||||
| 19 | WG04L02355 | Knob Asm (Replaces: WH01X10645) |
|
$ 27.16 | |||||
| 23 | WE4M538 | Board Asm Mounted |
|
- | |||||
| 36 | WE5M68 | Harness |
|
- | |||||
| 72 | WE19M1481 | Panel Back |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 206 | WE2M200 | Screw |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm Spring (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal |
|
- | |||||
| 219 | WE14X20248 | Blower Housing |
|
- | |||||
| 223 | WE2M189 | Screws |
|
- | |||||
| 228 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01199 | T-stat , Outlet Bkup Org (Replaces: WE4M300) |
|
$ 10.99 | |||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M51 | Plate Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screws |
|
- | |||||
| 240 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 241 | WE4M391 | Outlet Cntrl Thermistor |
|
- | |||||
| 273 | WE2M228 | Screw No.8 ( Ground ) |
|
- | |||||
| 461 | WZ5X158 | Screw Ground |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M37 | Motor Thrd Shaft & Pully |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 | ||||
| 2222 | WE15X20476 | Harness Elect Asm |
|
- |
