SELECT A DIAGRAM

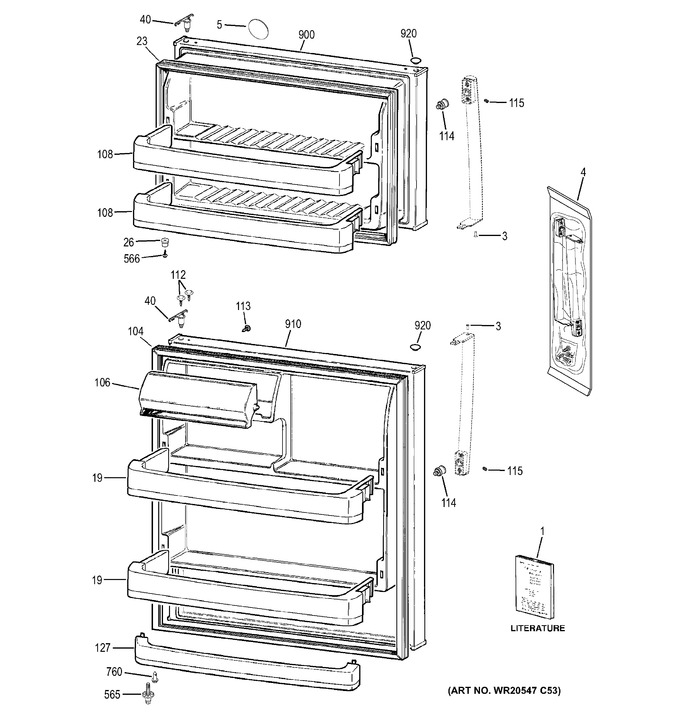

1 - Doors


2 - Cabinet


3 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60691-1		Pm Guide Owners		Appelez-nous	-
1	31-51877		Pm Mini Manual Wiring		Appelez-nous	-
3	WR01A00636		Scr 10-16 Ab Pl Flp 3/4   (Replaces: WR01X10483)				$ 11.12
4	WR12X20797		Pk Handle Large Asm		Appelez-nous	-
5	WR04X10222		Badge Asm Ge		Appelez-nous	-
19	WR17X12916		Shelf Fixed Ff		Appelez-nous	-
23	WG03L00639		Gasket Door Fz   (Replaces: WR24X10227)				$ 133.54
26	WR02X13135		Stop Door		Appelez-nous	-
40	WR02X21094		Epaulet Door Corner		Appelez-nous	-
104	WG03L02119		Gasket Door Ff   (Replaces: WR24X10237)			Immediately	$ 168.52
106	WG03L00721		Door Dairy   (Replaces: WR22X10068)				$ 83.70
108	WG03F01622		Shelf Fixed Fz   (Replaces: WR17X11890)			Immediately	$ 50.92
112	WR02X21195		Plug Door Rvsbl		Appelez-nous	-
113	WR02X21763		Plug Button		Appelez-nous	-
114	WR01X21313		Fastener Door Handle		Appelez-nous	-
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
127	WG03L01567		Shelf Fixed Ff   (Replaces: WR17X11911)				$ 67.82
565	WG03A00419		Scr 12-24 Gx Hxw .750   (Replaces: WR01X10950)				$ 29.41
566	WR01X10898		Scr 12-24 Gx Bht20 .900		Appelez-nous	-
760	WR01X10641		Scr 10-32 Gx Hxw 9/16 S		Appelez-nous	-
900	WG03L06525		Door Asm Foam Fz Slate   (Replaces: WR78X20203)				$ 254.43
910	WR78X20202		Door Asm Foam Ff Slate		Appelez-nous	-
920	WR02X11774		Plug Button Thimble		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
