SELECT A DIAGRAM

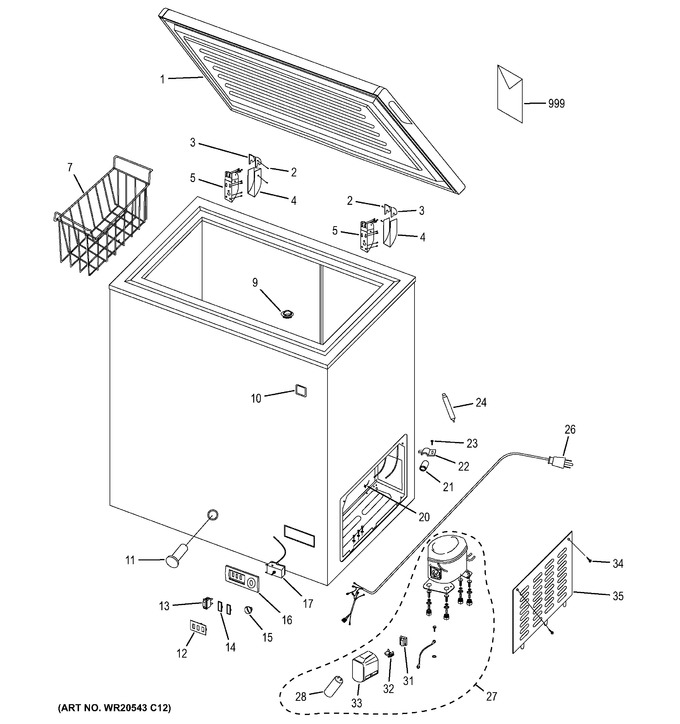

1 - Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR90X00045 | Door |
|
- | |||||
| 2 | WR01X10743 | Screw |
|
- | |||||
| 3 | WR13X10969 | Hinge, Top Cover |
|
- | |||||
| 4 | WR13X10970 | Hinge, Bottom Cover |
|
- | |||||
| 5 | WR13X10971 | Hinge |
|
$ 18.84 | |||||
| 7 | WR21X10208 | Basket |
|
$ 33.39 | |||||
| 9 | WR02X12189 | Drain Stopper |
|
- | |||||
| 10 | WR02X12047 | Logo |
|
- | |||||
| 11 | WR02X12044 | Drain Plug |
|
- | |||||
| 12 | WR02X12191 | Cover Board |
|
- | |||||
| 13 | WG03F02173 | Green Light (Replaces: WR02X12046) |
|
$ 17.15 | |||||
| 14 | WR02X12048 | Light Cover |
|
- | |||||
| 15 | WR02X12190 | Thermostat Knob |
|
- | |||||
| 16 | WR55X10540 | Control Panel |
|
- | |||||
| 17 | WG03F00745 | Thermostat (Replaces: WR50X10085) |
|
$ 56.10 | |||||
| 20 | WR01X10745 | Power Cord Fix Belt |
|
- | |||||
| 21 | WR02X12194 | Grommet Rubber |
|
- | |||||
| 22 | WR01X10747 | Power Cord Clamp |
|
- | |||||
| 23 | WR01X10746 | Screw |
|
- | |||||
| 24 | WR86X10035 | Filter Drier |
|
- | |||||
| 26 | WR23X10458 | Power Cord |
|
- | |||||
| 27 | WR87X10202 | Compressor |
|
- | |||||
| 28 | WR62X10091 | Capacitor |
|
- | |||||
| 31 | WR07X10125 | Ptc |
|
- | |||||
| 32 | WR07X10126 | Olp |
|
- | |||||
| 33 | WR02X13050 | Terminal Cover |
|
- | |||||
| 34 | WR01X10487 | Screw |
|
- | |||||
| 35 | WR17X12345 | Access Panel |
|
- |
