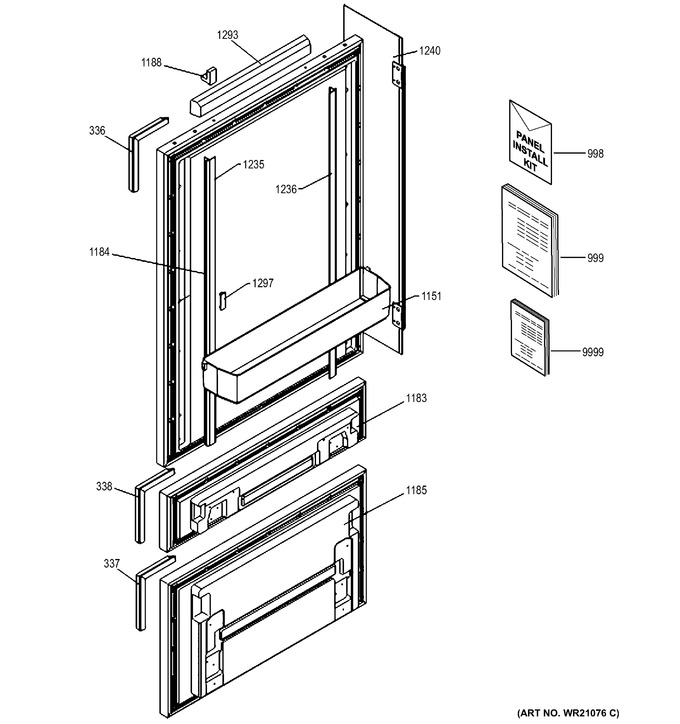

1 - Doors
2 - Cabinet
3 - Evaporator Instructions
4 - Shelves
5 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 336 | WR24X10270 | Magnetic Gasket-ff |
|
- | |||||
| 337 | WR24X10271 | Magnetic Gasket-fz |
|
- | |||||
| 338 | WR24X10272 | Magnetic Gasket Ice |
|
- | |||||
| 998 | WR49X10264 | Panel Installation Kit |
|
- | |||||
| 999 | 49-60615-2 | Pm Guide Owners |
|
- | |||||
| 999 | 31-51808-1 | Pm Min Manual Wiring |
|
- | |||||
| 1151 | WR17X12960 | Door Bin Ff |
|
- | |||||
| 1183 | WR78X12717 | Ice Drawer Asm |
|
- | |||||
| 1184 | WR78X12715 | Ff Door Asm |
|
- | |||||
| 1185 | WR78X12716 | Fz Door Asm |
|
- | |||||
| 1188 | WR11X10028 | Door Magnet Holder |
|
- | |||||
| 1235 | WR02X13478 | Door Container Guide L |
|
- | |||||
| 1236 | WR02X13479 | Door Container Guide R |
|
- | |||||
| 1240 | WR13X10962 | Guard, Hinge |
|
- | |||||
| 1293 | WR13X10979 | Panel Holder Cover |
|
- | |||||
| 1297 | WR32X10902 | Door Tray Guide Cover |
|
- | |||||
| 9999 | WR86X10074 | Kit Asm Service R600a |
|
- | |||||
| 9999 | WR86X10072 | Kit Service R600a |
|
- |
