Diagram # Part Number Description Series Availability Ships Price Add to Cart
235 WE2M307 Scr 10-16 X 1/2 Ab Appelez-nous -
272 WE2M308 Scr 8-15 X 7/16 Ab Appelez-nous -
709 WE1X1148 Orifice Appelez-nous -
710 WE1X1076 Leak Limiter Appelez-nous -
712 WE14M159 Gas Valve & Pipe Asm. Ng Special Order $ 456.54

715 WD2M101 Scr Appelez-nous -
716 WE14M104 Burner Asm. Special Order $ 255.39

717 WE4M456 Ignitor Appelez-nous -
718 WE1M486 Shutter Appelez-nous -
723 WE13M52 Bracket Gas Valve Appelez-nous -
729 279834 Coil Dual   (Replaces: WE4X692) In-Stock Immediately $ 29.57

730 WE2X333 Screw (coil Mtg Brkt) Appelez-nous -
731 58804AB Coil Main   (Replaces: WE4X693) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

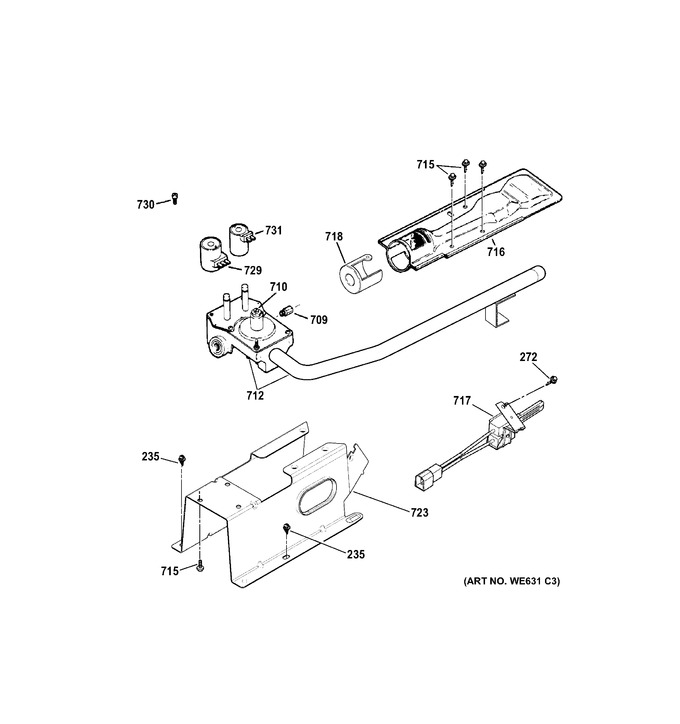

Diagram for GTDS560GF2WS
