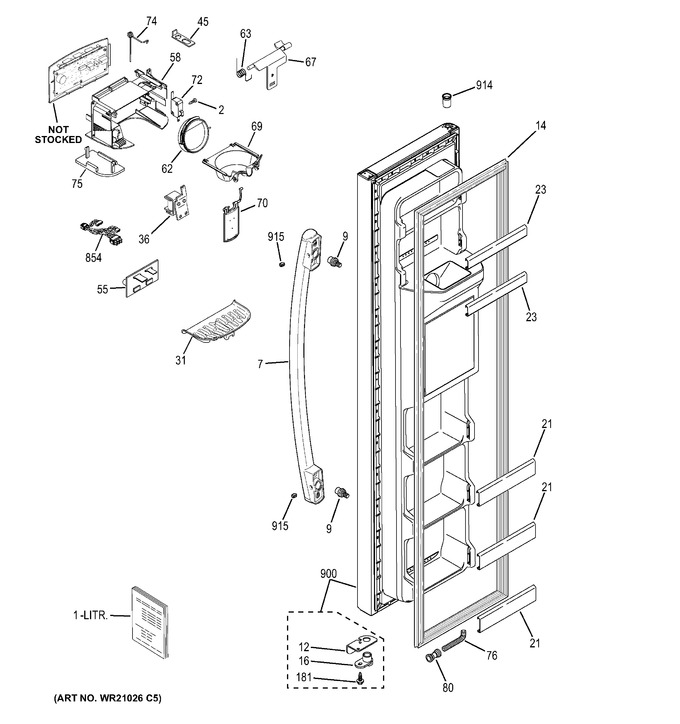

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51790		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60514		Pm Guide Owners		Appelez-nous	-
2	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
7	WR12X20439		Arc Handle Asm		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR02X10576		Plate Door Stop Fz		Appelez-nous	-
14	WR24X10300		Gasket Door Fz		Appelez-nous	-
16	WG03L01097		Cam & Thimble Fz   (Replaces: WR02X11478)				$ 7.20
21	WR17X12070		Front Door Shelf Fz		Appelez-nous	-
23	WR17X12076		Front Door Shelf Fz		Appelez-nous	-
31	WR17X12231		Grill Recess		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
55	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 15.88
58	WR01L13534		Housing Shield Disp   (Replaces: WR17X12119)				$ 18.59
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 65.21
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
69	WR01F00833		Funnel Ice Disp   (Replaces: WR17X12120)				$ 54.09
70	WR17X12886		Paddle Asm		Appelez-nous	-
72	WR01F03637		Switch   (Replaces: WR23X10224)			Immediately	$ 17.47
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 23.82
75	WR02X13405		Cover Led Housing Shield		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 19.06
181	WR01X10655		Scr 10-32 F Hxw 3/4 S		Appelez-nous	-
854	WR23X10695		Harness Recess Disp		Appelez-nous	-
900	WR78X21316		Door Asm Foam Fz Wh		Appelez-nous	-
914	WR01X10200		Thimble Door Top		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
