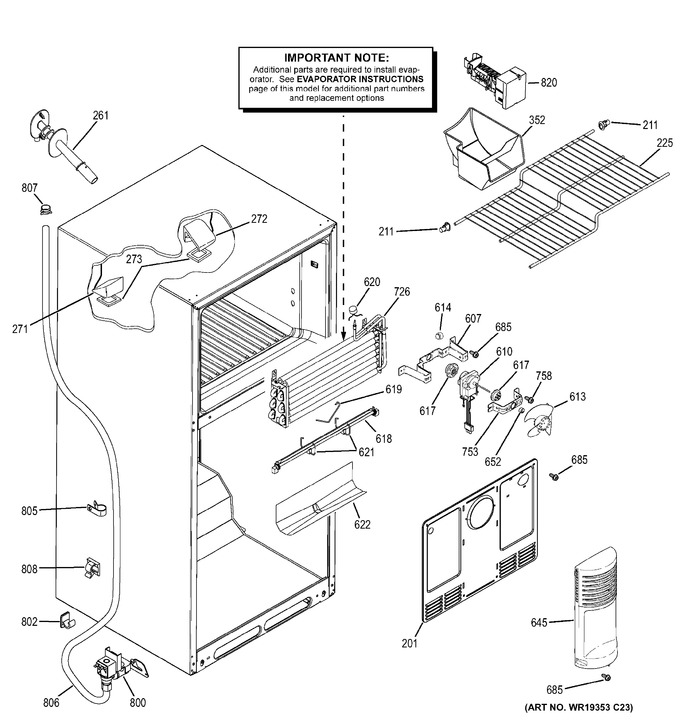

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Evaporator Instructions
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Machine Compartment
7 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 201 | WR17X11641 | Cover Evap Asm |
|
- | |||||
| 211 | WG03A00098 | Support Shlf (Replaces: WR2X8429) |
|
$ 4.20 | |||||
| 225 | WG03L01556 | Shelf Asm Fz (Replaces: WR71X10702) |
|
$ 60.74 | |||||
| 261 | WR02X10804 | Grommet Water Fill Assy |
|
- | |||||
| 271 | WR02X10718 | Hood Duct Ff Assy L/side |
|
- | |||||
| 272 | WR02X10719 | Hood Duct Ff Assy R/side |
|
- | |||||
| 273 | WR14X10077 | Gasket Hood |
|
- | |||||
| 352 | WR30X291 | Ice Bucket |
|
- | |||||
| 607 | WR02X11582 | Bracket Evap Fan |
|
- | |||||
| 610 | WG03F05799 | Motor Ac/dc Evap Fan (Replaces: WR60X10240) |
|
Immediately | $ 181.21 | ||||
| 613 | WR60X10055 | Blade Evap Fan |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 617 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 6.99 | ||||
| 618 | WR09X21107 | Heater Def Asm |
|
- | |||||
| 619 | WR51X10046 | Conductor Heat |
|
- | |||||
| 620 | WR50X10077 | Thermostat Def |
|
- | |||||
| 621 | WR02X10518 | Holder Element |
|
- | |||||
| 622 | WG03F02788 | Trough Drain (Replaces: WR17X10866) |
|
$ 35.32 | |||||
| 645 | WG03F03630 | Tower Bottom Fz (Replaces: WR17X11521) |
|
$ 27.82 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 726 | WR87X21168 | Evap And Tube Asm |
|
- | |||||
| 753 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 27.00 | ||||
| 758 | WG03A01146 | Scr 8-32 Tt Hxw 3/8 S (Replaces: WR01X10860) |
|
$ 4.20 | |||||
| 800 | WG03F00686 | Water Valve With Guard (Replaces: WR57X10033) |
|
Immediately | $ 80.53 | ||||
| 802 | WR01X10182 | Clip U |
|
- | |||||
| 805 | WR2X3736 | Str Relief |
|
- | |||||
| 806 | WR17X11492 | Tube Plastic |
|
- | |||||
| 807 | WR02X11437 | Clamp |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- | |||||
| 820 | WR30X10109 | Im Asm Crescent |
|
- |
