SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Evaporator Instructions


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Machine Compartment

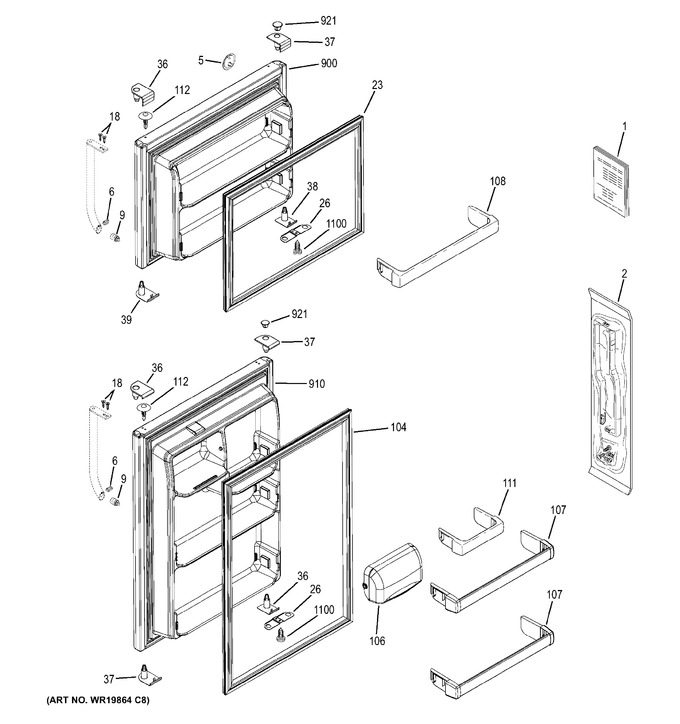

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51838		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60511		Pm Guide Owners		Appelez-nous	-
2	WR12X20797		Pk Handle Large Asm		Appelez-nous	-
5	WR04X10222		Badge Asm Ge		Appelez-nous	-
6	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
9	WR01X21313		Fastener Door Handle		Appelez-nous	-
18	WR01A00636		Scr 10-16 Ab Pl Flp 3/4   (Replaces: WR01X10483)				$ 11.12
23	WG03L00638		Gasket Door Fz   (Replaces: WR24X10185)				$ 173.61
26	WR02X10752		Stop Door Fz Black		Appelez-nous	-
36	WR02X11761		Cap Door Corner Bk		Appelez-nous	-
37	WR02X11762		Cap Door Corner Bk		Appelez-nous	-
38	WR02X11763		Cap Door Corner Bk		Appelez-nous	-
39	WR02X11764		Cap Door Corner Bk		Appelez-nous	-
104	WG03L00637		Gasket Door Ff   (Replaces: WR24X10184)				$ 193.30
106	WG03L09118		Door Dairy Clear   (Replaces: WR22X10024)				$ 63.72
107	WG03F03746		Bin Fixed Raingutter Gal   (Replaces: WR71X10525)				$ 133.54
108	WG03L01680		Shelf Front Full Fz   (Replaces: WR71X10681)				$ 76.98
111	WG03L01575		Shelf Front Half Ff   (Replaces: WR71X10682)				$ 72.54
112	WR01A00518		Plug Door Rvsbl Bk   (Replaces: WR2X8701)				$ 4.20
900	WR78X12943		Door Asm Foam Fz Ss		Appelez-nous	-
910	WR78X12944		Door Asm Foam Ff Ss		Appelez-nous	-
921	WG03F02242		Plug Door Thimble Black   (Replaces: WR02X10751)				$ 4.20
1100	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
