Diagram # Part Number Description Series Availability Ships Price Add to Cart
108 WS01A01150 Screw (cr)   (Replaces: WB1X5364) Special Order $ 3.97

500 WR21X10249 Basket Bottom Asm Appelez-nous -
501 WG03L05151 Gear Lwr Drw Rh   (Replaces: WR02X13629) Special Order $ 12.71

502 WG03L05152 Gear Lwr Drw Lh   (Replaces: WR02X13630) Special Order $ 19.06

503 WG03F03819 Connnector Gear Pinion   (Replaces: WR02X13631) Special Order $ 6.35

504 WR02X13670 Crossbar Pinion Appelez-nous -
505 WR01X11023 Pin Cross Bar Appelez-nous -
507 WR01X11036 Screw Set Door Fz Appelez-nous -
509 WR02X13686 Wheel Slide Asm Appelez-nous -
512 WR02X13661 Divider Bottom Basket Fz Appelez-nous -
513 WR21X10248 Basket Bottom Fz Appelez-nous -
514 WR02X13674 Support Slide Fz Appelez-nous -
515 WR17X13085 Support Btm Fz Divider Appelez-nous -
516 WR02X13667 Stopper Fz Divider Appelez-nous -
517 WR01X11050 Fastener Push Appelez-nous -
518 WR17X13238 Bracket Slide Fz Rh Appelez-nous -
519 WR17X13239 Bracket Slide Fz Lh Appelez-nous -
520 WR17X13077 Bracket Slide Rh Appelez-nous -
521 WR17X13170 Slide Upper Basket Appelez-nous -
522 WR01X11022 Scr 8-18 B Rnt20 1/4 S Appelez-nous -
524 WR17X13079 Bracket Slide Lh Appelez-nous -
526 WR17X13232 Divider Fz Appelez-nous -
527 WR72X10427 Slide Lower Fz Rh Appelez-nous -
528 WR72X10428 Slide Lower Fz Lh Appelez-nous -
529 WR17X13231 Glide Lh Asm Appelez-nous -
530 WR32X10871 Basket Upper Asm Rh Appelez-nous -
535 WR30X10172 Basket Fz Im Asm Appelez-nous -
536 WR02X13696 Baffle Fz Im Appelez-nous -
537 WR02X21129 Cover Fz Im Appelez-nous -
548 WR29X10111 Stripper Im Appelez-nous -
549 WR30X10167 Cup Fill Fz Im Appelez-nous -
550 WR30X10169 Ice Maker Asm Appelez-nous -
556 WR72X20645 Holder Slide Fz Rh Appelez-nous -
557 WR72X20644 Holder Slide Fz Lh Appelez-nous -
570 WR1X1757 Scr 8-18 Hxw 1 1/4s Appelez-nous -
578 WR01X11012 Scr 8-18 Ab Hxw 9/16 S Appelez-nous -
580 WR01X11013 Scr 10-18 Flt20 3/4 S Appelez-nous -
581 WG03F01809 Striker Light Switch   (Replaces: WR02X13632) Special Order $ 6.09

616 WR29X10112 Spring Feeler Arm Appelez-nous -
619 WR29X10110 Arm Feeler Im Appelez-nous -
961 WR17X13230 Plate Mounting Fz Im Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

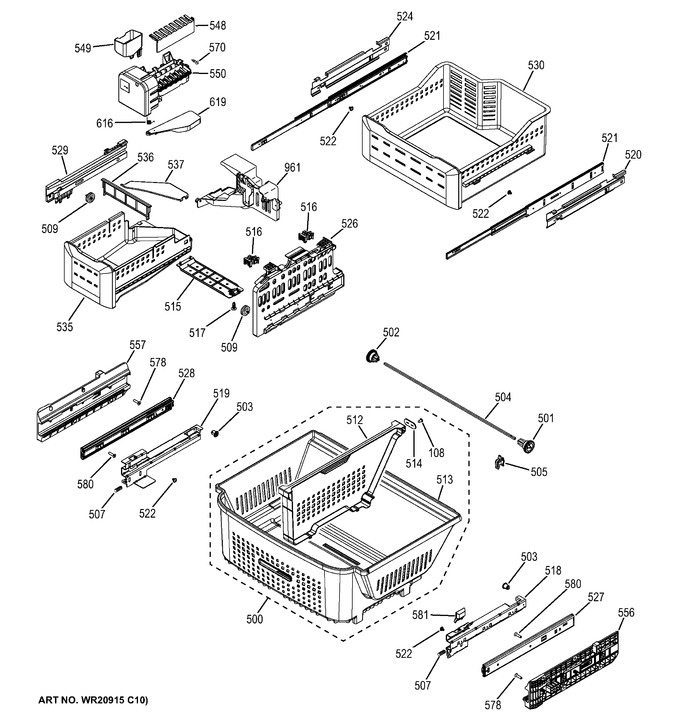

Diagram for DFE29JMDHES
