SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section

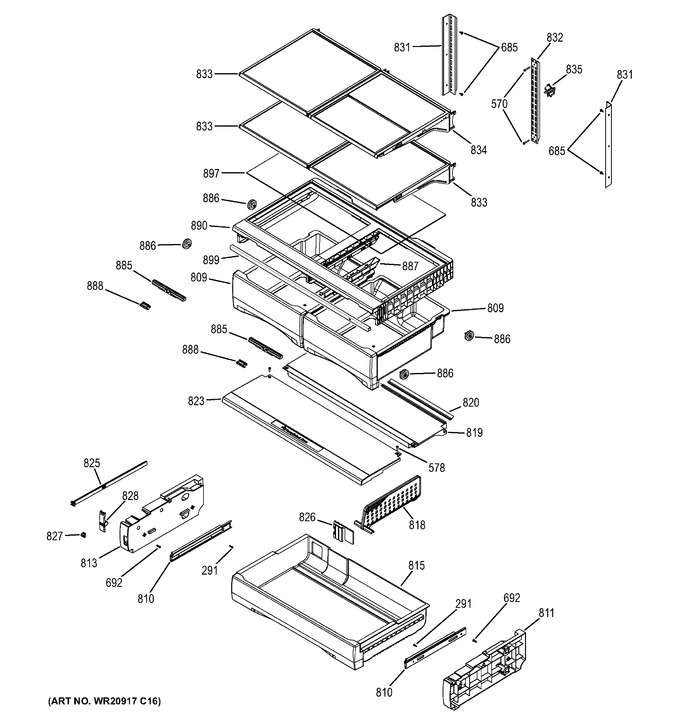

7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
291	WR01X10649		Scr 8-10 Pl Pnp 1/2 S		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
809	WR32X10912		Pan Veg Rh Asm		Appelez-nous	-
810	WR72X10462		Slide Asm Meat Pan		Appelez-nous	-
811	WR72X10448		Support Side Rh		Appelez-nous	-
813	WR72X10455		Art Support Side Lh Asm		Appelez-nous	-
815	WR32X10884		Pan Meat Asm		Appelez-nous	-
818	WR17X13193		Divider Meat Pan		Appelez-nous	-
819	WR72X10438		Cover Mp Back Asm		Appelez-nous	-
820	WR14X10368		Gasket Meat Pan		Appelez-nous	-
823	WR32X10918		Cover Mp Front Asm		Appelez-nous	-
825	WR02X13767		Lever Manual Damper		Appelez-nous	-
826	WR02X13695		Damper Flap		Appelez-nous	-
827	WR02X13692		Switch Manual Damper Mp		Appelez-nous	-
828	WR02X13691		Knob		Appelez-nous	-
831	WR72X21071		Track Side Ff		Appelez-nous	-
832	WR72X10429		Track Center Ff		Appelez-nous	-
833	WR32X10916		Shelf Asm		Appelez-nous	-
834	WR32X10915		Shelf Asm Tuckaway		Appelez-nous	-
835	WR02X13679		Spacer Track		Appelez-nous	-
885	WR17X13073		Damper Slide Veg Pan		Appelez-nous	-
886	WR02X13658		Roller Asm		Appelez-nous	-
887	WR72X10447		Guide Roller Veg Pan		Appelez-nous	-
888	WR02X13677		Knob Veg Pan		Appelez-nous	-
890	WR32X10910		Art Frame Vp Asm		Appelez-nous	-
897	WR32X10911		Glass Veg Pan		Appelez-nous	-
899	WR02X21803		Bar Reinforcement		Appelez-nous	-
	WG03A01652		Stop Door Asm				$ 25.41
	WG03F06676		Fan Motor Dc Ff Evap   (Replaces: WG03F04082)			Immediately	$ 127.15
	WG03F04848		Fan Dc Ff Evap		Appelez-nous	-
	WG03F04933		Control Lh Door Side Asm				$ 191.72
	WG03F05706		Board Asm Main Control				$ 569.26
	WG03F05740		Ap5 Nidec Ff Fan Conversion Cc				$ 196.47
	WG03L05654		Closure Door Asm Lh				$ 62.58
	WG03L07665		Pk Door Rh Asm Ps				$ 400.45
	WG04A01013		Badge Ge Asm				$ 23.82

    View Diagram in Separate Window       Print Part List
