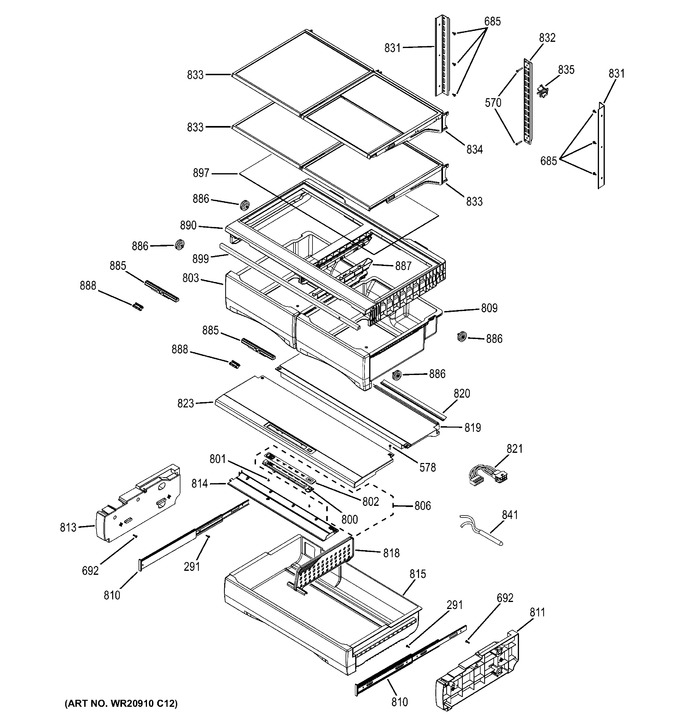

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s |
|
- | |||||
| 578 | WR01X11012 | Scr 8-18 Ab Hxw 9/16 S |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 800 | WR55X11123 | Pcb Board Deli Pan |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 802 | WG03L05202 | Overlay Meat Pan Asm (Replaces: WR04X10180) |
|
$ 24.55 | |||||
| 806 | WG03F03376 | Pcb Board Deli W/overlay (Replaces: WR49X10281) |
|
$ 235.29 | |||||
| 809 | WR32X10912 | Pan Veg Rh Asm |
|
- | |||||
| 810 | WR72X10462 | Slide Asm Meat Pan |
|
- | |||||
| 811 | WR72X10448 | Support Side Rh |
|
- | |||||
| 813 | WR72X10450 | Support Side Lh |
|
- | |||||
| 814 | WR32X10913 | Diffuser Meat Pan |
|
- | |||||
| 815 | WR32X10884 | Pan Meat Asm |
|
- | |||||
| 818 | WR17X13193 | Divider Meat Pan |
|
- | |||||
| 819 | WR72X10435 | Cover Mp Back Asm |
|
- | |||||
| 820 | WR14X10368 | Gasket Meat Pan |
|
- | |||||
| 821 | WR23X10774 | Harness Meat Pan |
|
- | |||||
| 823 | WR32X10917 | Cover Mp Top Front |
|
- | |||||
| 831 | WR72X10430 | Track Side Ff |
|
- | |||||
| 832 | WR72X10429 | Track Center Ff |
|
- | |||||
| 833 | WR32X10916 | Shelf Asm |
|
- | |||||
| 834 | WR32X10915 | Shelf Asm Tuckaway |
|
- | |||||
| 835 | WR02X13679 | Spacer Track |
|
- | |||||
| 841 | WR55X11141 | Sensor Temperature |
|
- | |||||
| 885 | WR17X13073 | Damper Slide Veg Pan |
|
- | |||||
| 886 | WR02X13658 | Roller Asm |
|
- | |||||
| 887 | WR72X10447 | Guide Roller Veg Pan |
|
- | |||||
| 888 | WR02X13677 | Knob Veg Pan |
|
- | |||||
| 890 | WR32X10910 | Art Frame Vp Asm |
|
- | |||||
| 897 | WR32X10911 | Glass Veg Pan |
|
- | |||||
| 899 | WR02X21803 | Bar Reinforcement |
|
- |
