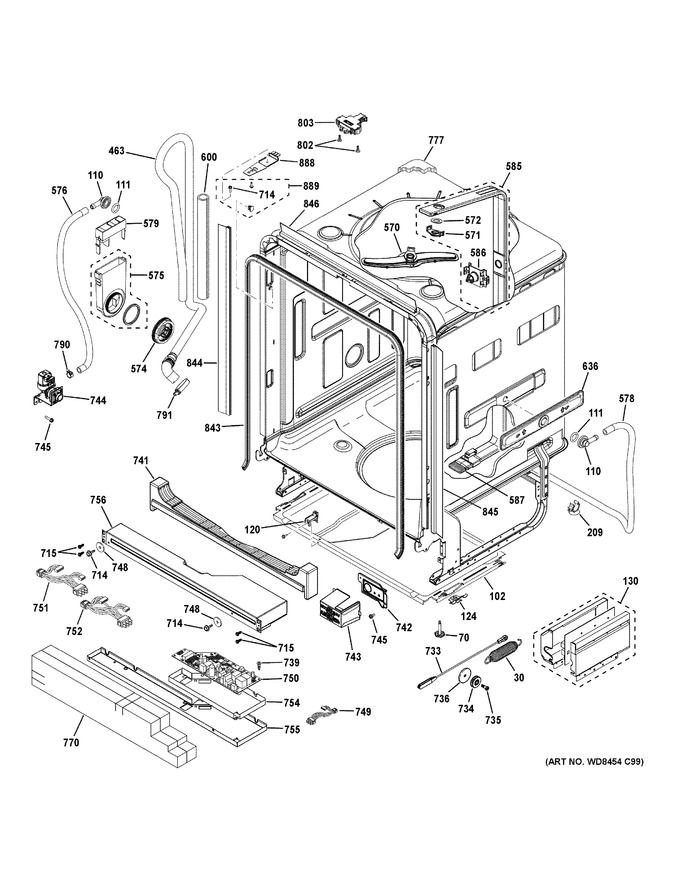

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WG04A02197		Spring Door   (Replaces: WD03X20316)			Immediately	$ 23.53
70	WG01A01600		Screw Leveling   (Replaces: WD12X10417)			Immediately	$ 9.53
102	WD18X20461		Pan Leak		Appelez-nous	-
110	WD22X20538		Fill Elbow		Appelez-nous	-
111	WD08X22854		Gasket Plug		Appelez-nous	-
120	WD21X20552		Sensor Leak Pan		Appelez-nous	-
124	WD18X20464		Clip Leak Pan		Appelez-nous	-
130	WD21X20728		Inverter Asm Dish Pump		Appelez-nous	-
209	WD01X22855		Clip Hose Side Blaster		Appelez-nous	-
463	WG04F12155		Hose Loop Drain High   (Replaces: WD24X10067)			Immediately	$ 57.27
570	WD22X22501		Upper Spray Arm Asm		Appelez-nous	-
571	WD12X22503		Hub Upper Spray Arm		Appelez-nous	-
572	WD08X22502		Gasket Upper Spray Arm		Appelez-nous	-
574	WD01X20738		Nut Water Inlet		Appelez-nous	-
575	WG04A04294		Funnel And Gasket Asm   (Replaces: WD12X21322)			Immediately	$ 55.68
576	WD24X10064		Hose Fill		Appelez-nous	-
578	WD21X20339		Hose Fill		Appelez-nous	-
579	WD12X20835		Cap Fill Funnel		Appelez-nous	-
585	WD12X22497		Conduit Main Asm		Appelez-nous	-
586	WD12X20118		Docking Port Ss		Appelez-nous	-
587	WG04F06950		Seal Conduit   (Replaces: WD08X10098)				$ 9.53
600	WD24X22856		Isolator Drain Hose		Appelez-nous	-
636	WG04L03242		Side Blaster Asm   (Replaces: WD22X20198)				$ 34.94
714	WG04A01237		Scr 8-18 B Hxw .480 S   (Replaces: WD02X10160)				$ 3.97
715	WG04A02147		Scr 10-32 Gx Hxw 3/8   (Replaces: WD02X10220)				$ 3.97
733	WG04F04517		Cable Asm Pulley   (Replaces: WD01X10569)			Immediately	$ 19.06
734	WD16X10013		Pulley Hinge		Appelez-nous	-
735	WD02X10206		Pulley Screw		Appelez-nous	-
736	WD01X20565		Friction Washer		Appelez-nous	-
739	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
741	WD01X21994		Spacer Tub Front		Appelez-nous	-
742	WD12X10411		Bracket Junction Box		Appelez-nous	-
743	WG04L01578		Cover Junction Box   (Replaces: WD12X10412)			Immediately	$ 44.46
744	WG04F09808		Valve Water Asm   (Replaces: WD15X20326)			Immediately	$ 79.72
745	WD01X22514		Scr 10-32 Gx Ihxw 9/16 S		Appelez-nous	-
748	WD02X22877		Washer Control Box		Appelez-nous	-
749	WD21X20215		Harness Asm Jumper		Appelez-nous	-
750	WD21X10539		Kit Board Main Best				$ 261.00
751	WD21X20216		Harness Asm Ac		Appelez-nous	-
752	WD21X20217		Harness Asm Dc		Appelez-nous	-
754	WD01X20493		Shield Dielectric		Appelez-nous	-
755	WD30X20229		Control Box Bottom		Appelez-nous	-
756	WD27X10390		Control Box Top		Appelez-nous	-
770	WD30X21155		Bag Insulation Asm		Appelez-nous	-
777	WD01X21156		Insulation Tub		Appelez-nous	-
790	WD01X22786		Clamp Hose		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
802	WG03A00188		Scr 8-18 Ab Tsq 5/8 Ss   (Replaces: WR01X10380)				$ 3.97
803	WG04F04726		Latch Tub Side Standard   (Replaces: WD21X10490)			Immediately	$ 69.95
843	WG04A04003		Gasket Tub   (Replaces: WD08X20675)			Immediately	$ 192.73
844	WG04A05119		Left Side Trim Tub   (Replaces: WD08X20201)			Immediately	$ 86.93
845	WD08X20199		Right Side Trim Tub		Appelez-nous	-
846	WD08X20200		Center Trim Tub		Appelez-nous	-
888	WG04A03280		Bracket Countertop   (Replaces: WD01X10598)			Immediately	$ 30.76
889	WG04A01079		Ct Screw Asm   (Replaces: WD35X10383)			Immediately	$ 33.35
