1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

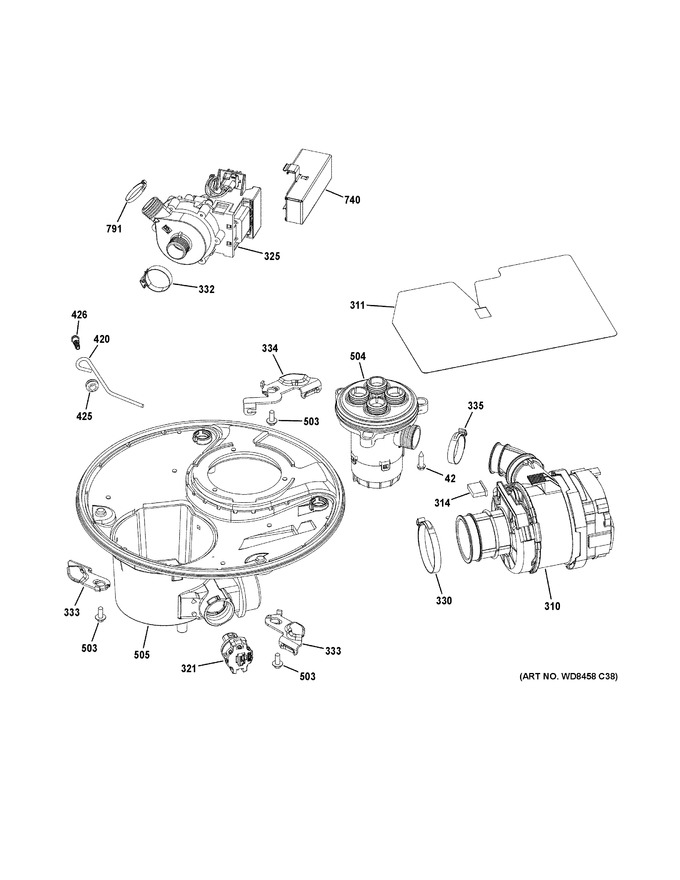

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X22736		Scr10 - 16 Ab Hxw 3/4 Ss		Appelez-nous	-
310	WG04A01811		Pump Variable Wash Asm   (Replaces: WD26X20213)			Immediately	$ 302.98
311	WD01X20212		Shield Pump Main		Appelez-nous	-
314	WD01X22890		Grommet Isolator		Appelez-nous	-
321	WD21X22598		Sensor Turbidity Asm		Appelez-nous	-
325	WD26X20740		Pump Drain Asm		Appelez-nous	-
330	WD01X20302		Clamp		Appelez-nous	-
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X22781		Scr 10-18 X 5/8		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X20214		Diverter Active Asm		Appelez-nous	-
505	WD18X10055		Sump Manifold		Appelez-nous	-
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
