SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill

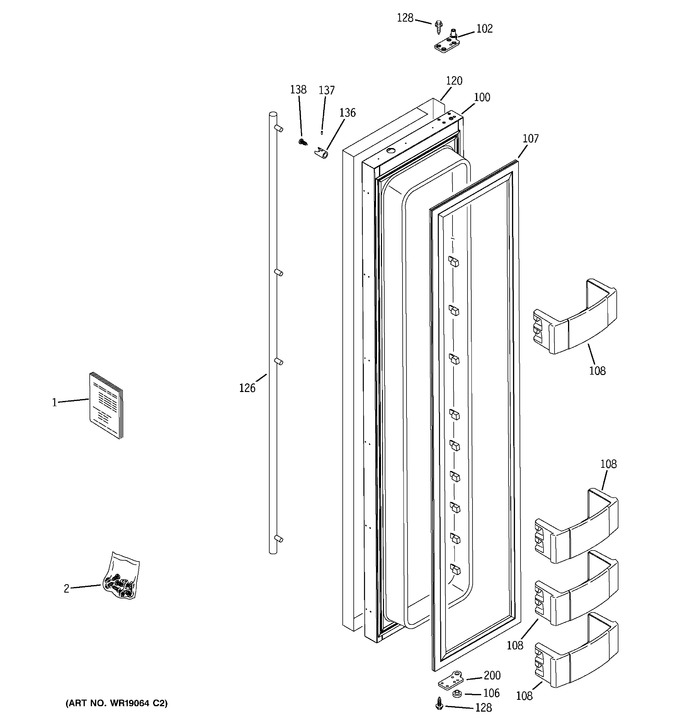

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60559-1		Owners Manual		Appelez-nous	-
1	31-46514-1		Pm Install Instructions		Appelez-nous	-
1	31-51852		Pm Mini Manual		Appelez-nous	-
2	WR01X10304		Hardware Pack		Appelez-nous	-
100	WR78X12146		Door Foam Asm Fz Sxs Nd		Appelez-nous	-
102	WR13X10238		Top Sxs Fz Door Hinge As		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
107	WR24X10203		Gasket Door		Appelez-nous	-
108	WR71X10426		Reg Bin Asm		Appelez-nous	-
120	WR78X12748		Wrap Asm Fz Sxs Euro		Appelez-nous	-
126	WR12X10949		Tubular Ss Handle Asm		Appelez-nous	-
128	WR01X21024		Screw, 1/4-20 Tt Bht .87		Appelez-nous	-
136	WG03F00574		Stand-off Ss   (Replaces: WR02X10165)				$ 112.62
137	WR01X10026		Screw Set 10-32		Appelez-nous	-
138	WR01X10057		Screw #10-32x3/4 Cr Tr H		Appelez-nous	-
200	WR13X10657		Hinge Door Btm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
