SELECT A DIAGRAM

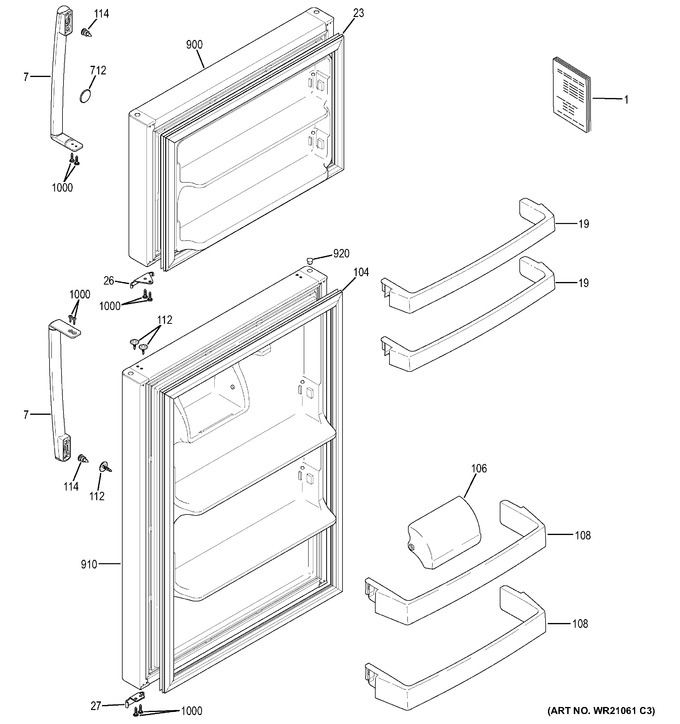

1 - Doors
2 - Freezer Section
3 - Fresh Food Section
4 - Fresh Food Shelves
5 - Machine Compartment
6 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51874 | Pm Mini Manual Wiring |
|
- | |||||
| 7 | WR12X21157 | Handle Plastic Asm White |
|
- | |||||
| 19 | WR71X21149 | Shelf Fixed Fz |
|
- | |||||
| 23 | WR14X21147 | Gasket Door Fz |
|
- | |||||
| 26 | WR02X21150 | Stop Door |
|
- | |||||
| 27 | WR02X21152 | Stop Door |
|
- | |||||
| 104 | WR14X21148 | Gasket Door Ff |
|
- | |||||
| 106 | WR22X21153 | Door Dairy |
|
- | |||||
| 108 | WR17X21154 | Shelf Fixed Ff |
|
- | |||||
| 112 | WR01X21159 | Plug Door Rvsbl |
|
- | |||||
| 114 | WR01X21158 | Fastener Door Handle |
|
- | |||||
| 712 | WR02X21156 | Badge Asm Ge |
|
- | |||||
| 900 | WR78X21146 | Door Foam Asm Fz |
|
- | |||||
| 910 | WR78X21145 | Door Foam Asm Ff |
|
- | |||||
| 920 | WR2X8233 | Plug Btn Wht |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- | |||||
| WG03A03078 | Light Switch, Monogram (Replaces: WR01F01519) |
|
Immediately | $ 11.39 | |||||
| WG03A02066 | Attache Porte |
|
$ 10.32 | ||||||
| WG03L06407 | Shield Reflector |
|
$ 1.25 | ||||||
| WG03L06404 | Clayette |
|
$ 74.38 | ||||||
| WG03A04821 | Handle Plastic Asm White (Replaces: WG03L06381) |
|
Immediately | $ 120.98 | |||||
| WG03L06376 | Gasket Door Fz |
|
$ 104.17 | ||||||
| WG03L08586 | Gasket Door Ff (Replaces: WG03L06372) |
|
Immediately | $ 122.66 | |||||
| WG03L06361 | Asm. Porte Refrig. |
|
$ 397.30 | ||||||
| WG03F05811 | Air Foam Damper |
|
$ 6.09 | ||||||
| WG03F06661 | Control Temp (Replaces: WG03F05810) |
|
Immediately | $ 97.29 | |||||
| WG03A03146 | Housing Control Em (Replaces: WG03F04670) |
|
$ 82.00 | ||||||
| WG03F04669 | Heater Def Asm |
|
$ 91.57 | ||||||
| WG03F04666 | Harness Jumper Fuse |
|
$ 78.20 | ||||||
| WG03F06661 | Control Temp (Replaces: WG03F04661) |
|
Immediately | $ 97.29 | |||||
| WG03F04988 | Control Defrost Module (Replaces: WG03F04660) |
|
Immediately | $ 105.46 | |||||
| WG03F07855 | Motor Ac/dc Evap Fan (Replaces: WG03F04628) |
|
Immediately | $ 122.66 | |||||
| WR01F01775 | Socket & Term Bk (Replaces: WG03F01470) |
|
$ 7.51 |
