SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker

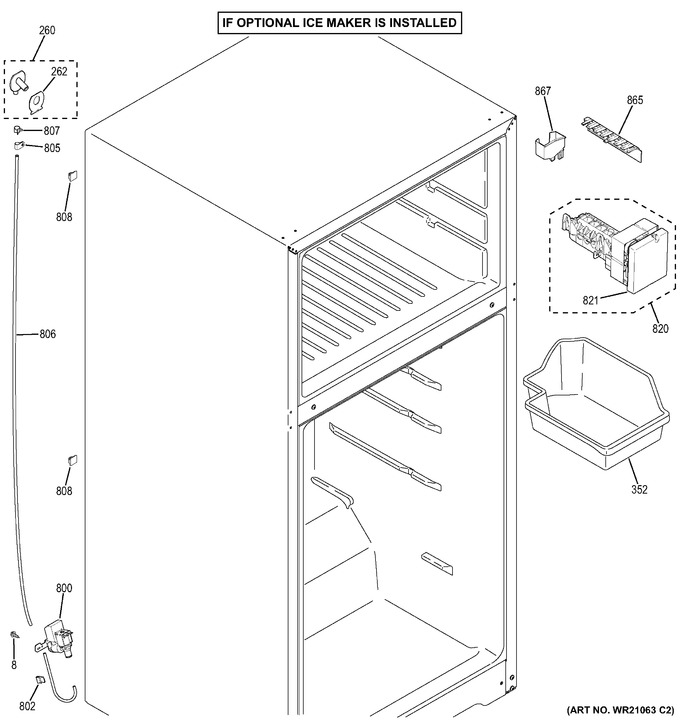

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
260	WR2X9224		Wr2x9161		Appelez-nous	-
262	WR2X9223		Gasket Donut		Appelez-nous	-
352	WR30X21245		Bucket Ice		Appelez-nous	-
800	WR57X21246		Valve And Tube Asm		Appelez-nous	-
802	WR01X10182		Clip U		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR17X11492		Tube Plastic		Appelez-nous	-
807	WR02X11437		Clamp		Appelez-nous	-
808	WR2X4039		Adhesive Clip		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 274.39
821	WR29X10080		Cover		Appelez-nous	-
865	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10046		Cup Fill Im		Appelez-nous	-
	WG03A00379		Gas Noise Service Fix			Immediately	$ 84.76
	WG03F07855		Motor Ac/dc Evap Fan   (Replaces: WG03F04628)			Immediately	$ 136.29
	WG03F06661		Control Temp   (Replaces: WG03F04661)			Immediately	$ 108.10
	WG03F06661		Control Temp   (Replaces: WG03F05810)			Immediately	$ 108.10
	WG03F05811		Air Foam Damper				$ 6.09
	WG03F07855		Motor Ac/dc Evap Fan   (Replaces: WG03F05834)			Immediately	$ 136.29
	WG03A01678		Badge Asm Ge   (Replaces: WG03L06350)				$ 14.29
	WG03L06353		Blade Evap Fan Asm				$ 16.22
	WG03L06377		Gasket Door Fz				$ 92.77
	WG03L10789		Clayette Du Rﾃ#frigﾃ#rateur   (Replaces: WG03L06400)			Immediately	$ 63.62

    View Diagram in Separate Window       Print Part List
