SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves

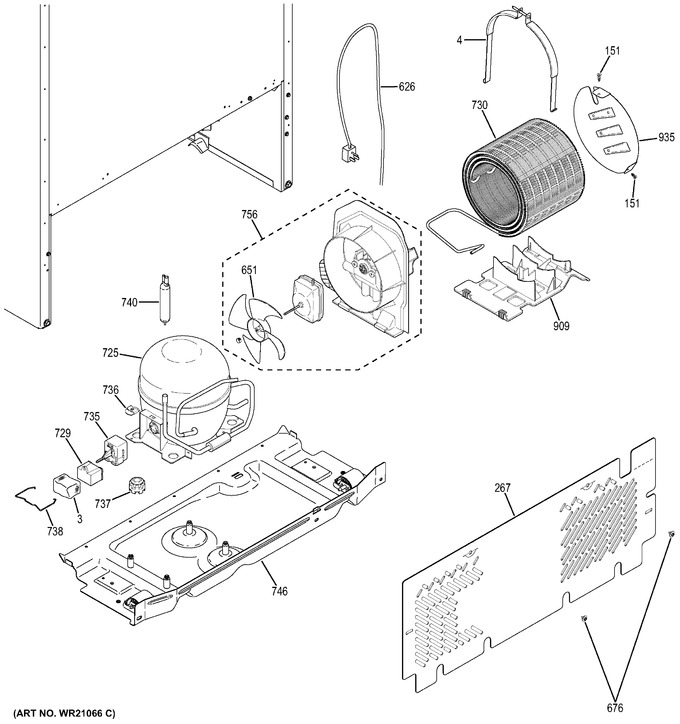

5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WR02X20733		Sleeve Fiber Glass		Appelez-nous	-
4	WR01X21163		Strap Cond Asm		Appelez-nous	-
151	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
267	WR82X21177		Cover Access		Appelez-nous	-
626	WR55X21182		Harness Mach Asm		Appelez-nous	-
651	WG03F10555		Blade Cond Fan Asm   (Replaces: WR60X10207)			Immediately	$ 17.47
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
725	WR87X21165		Compressor Mei		Appelez-nous	-
729	WR55X20800		Capacitor		Appelez-nous	-
730	WR84X21161		Condenser Formed Asm		Appelez-nous	-
735	WR01F03770		Overload Ptcr Combo   (Replaces: WR07X10133)			Immediately	$ 42.88
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
738	WR02X12004		Clip Retainer Mei		Appelez-nous	-
740	WG03A03157		P/s Dryer Kit R134a   (Replaces: WR86X96)			Immediately	$ 153.40
746	WR17X21160		Baseplate Stud Asm		Appelez-nous	-
756	WR17X21162		Fan Housing Asm				$ 115.45
909	WR02X21166		Support Condenser		Appelez-nous	-
935	WR17X21164		Baffle Condenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
