SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts (1)


3 - Body Parts (2)


4 - Upper Rack Assembly


5 - Lower Rack Assembly


6 - Sump & Filter Assembly

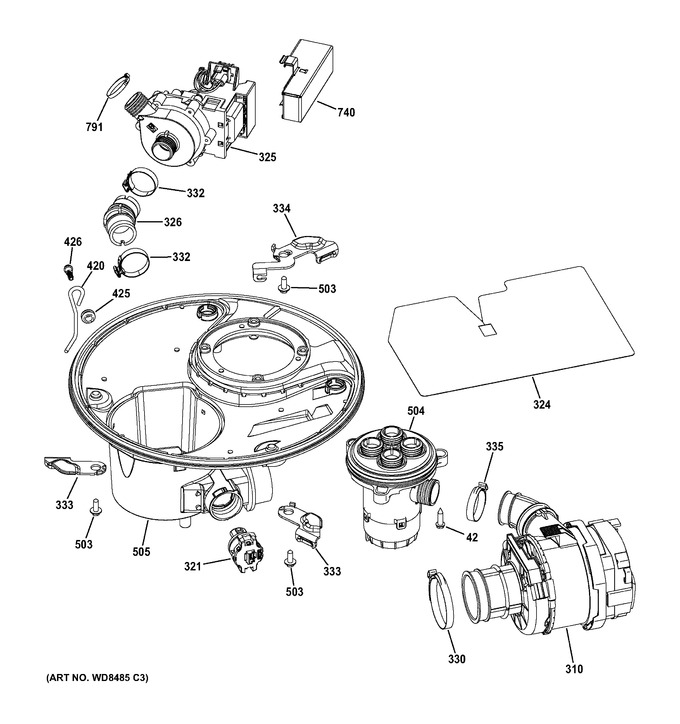

7 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD00X892		Screw #8-3/4 Hx Hd Ss		Appelez-nous	-
310	WG04A01811		Pump Variable Wash Asm   (Replaces: WD26X20213)			Immediately	$ 272.68
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 45.83
324	WD01X20212		Shield Pump Main		Appelez-nous	-
325	WD26X20306		Pump Variable Drain Asm		Appelez-nous	-
326	WD24X20305		Hose Elbow Drain		Appelez-nous	-
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X20304		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
504	WD18X20214		Diverter Active Asm		Appelez-nous	-
505	WD18X10055		Sump Manifold		Appelez-nous	-
740	WD01X20307		Shield Pump Drain		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 11.44
	WG04F07159		Insulation Tub Lip			Immediately	$ 61.55
	WG04A04448		Pump Variable Drain Asm   (Replaces: WG04F07127)			Immediately	$ 137.86
	WG04F07080		Hose Fill				$ 15.44
	WG04F07079		Silicone Light Pipe				$ 70.96
	WG04F10397		Active Diverter Asm Kit   (Replaces: WG04F07029)				$ 137.34
	WG04F06994		Conduit Main Asm				$ 77.14
	WG04F06992		Transition Piece Asm				$ 30.02
	WG04F06991		Vent Conduit Asm				$ 60.12
	WG04F06733		Striker Adapter				$ 10.32
	WG04F05896		Vent Fan Asm				$ 71.51
	WG04F05392		Harness Asm Dc				$ 91.53
	WG04F05134		Contrﾃ#le				$ 101.61
	WG04F05113		Console Top Control				$ 85.92
	WG04F04857		Switch Flood Asm			Immediately	$ 90.18
	WG04F04726		Latch Tub Side Standard			Immediately	$ 62.96
	WG04F04517		Cable Asm Pulley			Immediately	$ 17.15
	WW02F00592		Air Duct With Sensor   (Replaces: WG04F00359)			Immediately	$ 175.43
	WG04A03397		Kit Svc Machine Best				$ 127.69
	WG01F08006		Ens. Service Interface   (Replaces: WG04A03395)				$ 211.73
	WG01F08006		Ens. Service Interface   (Replaces: WG04A03032)				$ 211.73
	WG04A03030		Tc Inner Door Leak Kit				$ 236.72
	WG04A03014		Ens. Service Machine		Appelez-nous	-
	WG01F08400		Service Kit Upper Rack   (Replaces: WG04A02639)				$ 214.41
	WG04A02638		Kit Door Asm Outer				$ 331.15
	WG04L06311		Cover Console Asm Iml   (Replaces: WG04L04121)				$ 122.66
	WG04A02458		Clip Frame Wire Outer		Appelez-nous	-
	WG04A02373		Scr 10-32 Tt Hxw 14/25 S				$ 4.78
	WG04A03396		Kit Service Ui Lcd Cstn   (Replaces: WG04A01476)				$ 178.94
	WG04A01462		Kit Door Inner Asm				$ 223.57
	WG01A01653		Toe Kick Asm Bb   (Replaces: WG04A01322)			Immediately	$ 40.72
	WG01A01600		Screw Leveling   (Replaces: WG04A01265)			Immediately	$ 8.58
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 19.67
	WG04A03389		Svr- Door Closing Kit   (Replaces: WG03A02201)				$ 157.06
	WG04A02459		Clip Frame Wire Inner		Appelez-nous	-
	WG04A04003		Gasket Tub   (Replaces: WG04L04119)			Immediately	$ 173.46
	WG04L03831		Third Rack Wire Coated				$ 73.33
	WG04L03783		Silverware Tray Asm				$ 96.47
	WG04L03782		Tray Utensil		Appelez-nous	-
	WG04L05588		Rail Asm Third Rack   (Replaces: WG04L03645)				$ 127.34
	WG04L05584		Rail Asm Third Rack   (Replaces: WG04L03644)				$ 122.66
	WG04L03643		Toe Kick				$ 72.77
	WW01F03176		Module Detergent   (Replaces: WG04L03558)			Immediately	$ 86.67
	WG04L03502		Gasket Beach Ss				$ 21.32
	WG04F09635		Insulation Toe Kick   (Replaces: WG04L03238)				$ 10.81
	WG04L02103		Cover Vent				$ 17.15
	WG04L01634		Door Vent Seal			Immediately	$ 10.01
	WG01F08006		Control Ui Lcd   (Replaces: WG04F09672)				$ 211.73
	WG04F08195		Inverter Asm Dish Pump				$ 225.86
	WG04F08195		Inverter Asm Dish Pump   (Replaces: WG04F08112)				$ 225.86
