View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Escutcheon & Door Assembly

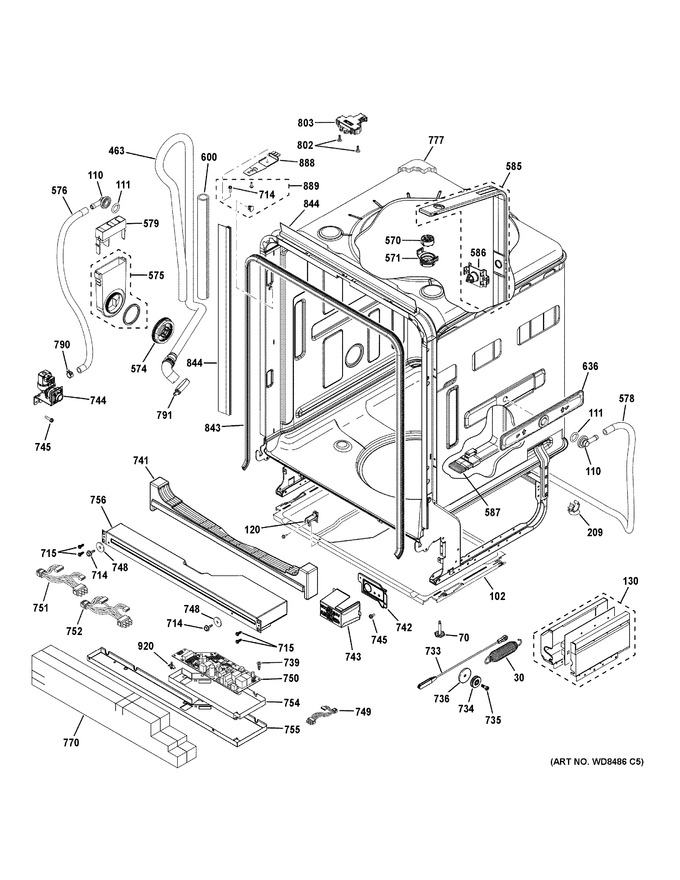

2 - Body Parts (1)
3 - Body Parts (2)
4 - Upper Rack Assembly
5 - Lower Rack Assembly
6 - Sump & Filter Assembly
7 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WD03X20445 | Spring Door |
|
- | |||||
| 30 | WG04A02383 | Spring Door (Replaces: WD03X20446) |
|
Immediately | $ 17.47 | ||||
| 70 | WG01A01600 | Screw Leveling (Replaces: WD12X10417) |
|
Immediately | $ 9.53 | ||||
| 102 | WD18X20461 | Pan Leak |
|
- | |||||
| 110 | WD22X20538 | Fill Elbow |
|
- | |||||
| 111 | WD08X22854 | Gasket Plug |
|
- | |||||
| 120 | WD21X20552 | Sensor Leak Pan |
|
- | |||||
| 130 | WD21X20728 | Inverter Asm Dish Pump |
|
- | |||||
| 209 | WD01X22855 | Clip Hose Side Blaster |
|
- | |||||
| 463 | WG04F12155 | Hose Loop Drain High (Replaces: WD24X10067) |
|
Immediately | $ 57.27 | ||||
| 570 | WD22X20689 | Impeller |
|
- | |||||
| 571 | WD22X20688 | Hub |
|
- | |||||
| 574 | WD01X20738 | Nut Water Inlet |
|
- | |||||
| 575 | WG04A04294 | Funnel And Gasket Asm (Replaces: WD12X21322) |
|
Immediately | $ 55.68 | ||||
| 576 | WD24X10064 | Hose Fill |
|
- | |||||
| 578 | WD21X20339 | Hose Fill |
|
- | |||||
| 579 | WD12X20835 | Cap Fill Funnel |
|
- | |||||
| 585 | WD12X22496 | Conduit Main Asm |
|
- | |||||
| 586 | WD12X20118 | Docking Port Ss |
|
- | |||||
| 587 | WG04F06950 | Seal Conduit (Replaces: WD08X10098) |
|
$ 9.53 | |||||
| 600 | WD24X22922 | Drain Hose Isolator Asm |
|
- | |||||
| 636 | WD22X21034 | Side Blaster Asm |
|
- | |||||
| 714 | WG04A01237 | Scr 8-18 B Hxw .480 S (Replaces: WD02X10160) |
|
$ 3.97 | |||||
| 715 | WG04A02147 | Scr 10-32 Gx Hxw 3/8 (Replaces: WD02X10220) |
|
$ 3.97 | |||||
| 733 | WD01X20332 | Cable Asm |
|
- | |||||
| 734 | WD16X20231 | Pulley Hinge |
|
- | |||||
| 735 | WD01X21837 | Scr 10-32 Tt Cb 1/4 Zn |
|
- | |||||
| 736 | WD01X20565 | Friction Washer |
|
- | |||||
| 739 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 741 | WD01X21994 | Spacer Tub Front |
|
- | |||||
| 742 | WD12X10411 | Bracket Junction Box |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 44.46 | ||||
| 744 | WG04F09808 | Valve Water Asm (Replaces: WD15X20326) |
|
Immediately | $ 79.72 | ||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 748 | WD02X22877 | Washer Control Box |
|
- | |||||
| 749 | WD21X22847 | Harness Asm Jumper |
|
- | |||||
| 750 | WD21X22811 | Kit Svc Machine Best (Replaces: WD35X20585) |
|
$ 221.64 | |||||
| 751 | WD21X20588 | Harness Asm Ac |
|
- | |||||
| 752 | WD21X21319 | Harness Asm Dc |
|
- | |||||
| 754 | WD01X20493 | Shield Dielectric |
|
- | |||||
| 755 | WD30X20229 | Control Box Bottom |
|
- | |||||
| 756 | WD27X10390 | Control Box Top |
|
- | |||||
| 770 | WD01X21774 | Bag Insulation Asm |
|
- | |||||
| 777 | WG04F06762 | Insulation Tub Blanket (Replaces: WD01X20187) |
|
$ 131.95 | |||||
| 790 | WD01X22786 | Clamp Hose |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| 802 | WG03A00188 | Scr 8-18 Ab Tsq 5/8 Ss (Replaces: WR01X10380) |
|
$ 3.97 | |||||
| 803 | WG04F04726 | Latch Tub Side Standard (Replaces: WD21X10490) |
|
Immediately | $ 69.95 | ||||
| 843 | WG04A04003 | Gasket Tub (Replaces: WD08X20675) |
|
Immediately | $ 192.73 | ||||
| 844 | WG04A03538 | Tub Trim Kit (Replaces: WD08X22894) |
|
$ 142.28 | |||||
| 888 | WG04A03280 | Bracket Countertop (Replaces: WD01X10598) |
|
Immediately | $ 30.76 | ||||
| 889 | WG04A01079 | Ct Screw Asm (Replaces: WD35X10383) |
|
Immediately | $ 33.35 | ||||
| 920 | WD01X21975 | Clip Control Board |
|
- |
