SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts (1)


3 - Body Parts (2)


4 - Upper Rack Assembly


5 - Lower Rack Assembly

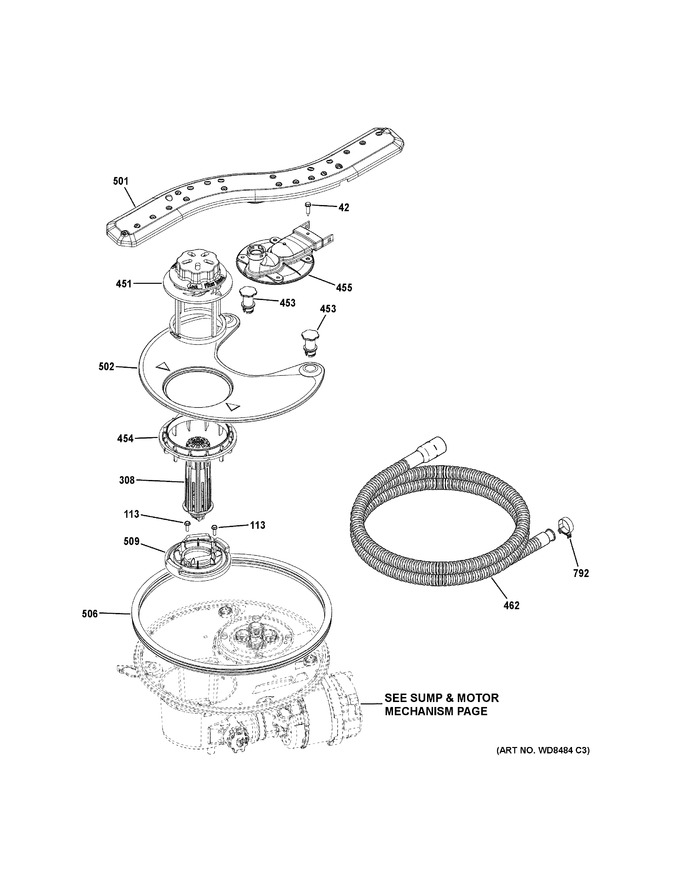

6 - Sump & Filter Assembly


7 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X22736		Scr10 - 16 Ab Hxw 3/4 Ss		Appelez-nous	-
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
308	WG04F04857		Switch Flood Asm   (Replaces: WD21X10519)			Immediately	$ 100.20
451	WD12X20549		Filter Manual Asm		Appelez-nous	-
453	WD24X22945		Vent Filter		Appelez-nous	-
454	WD12X10419		Adaptor Filter		Appelez-nous	-
455	WD18X21915		Adapter Conduit Asm		Appelez-nous	-
462	WG04F04609		Drain Tube Asm   (Replaces: WD24X10062)			Immediately	$ 42.93
501	WD22X20336		Arm Spray Lower Asm		Appelez-nous	-
502	WD22X10093		Filter Coarse Ss		Appelez-nous	-
506	WD08X21320		Gasket Sump Manifold		Appelez-nous	-
509	WD12X10421		Plate Floor Manual		Appelez-nous	-
792	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 12.71
	WG04L03830		Rail Int├#rieur				$ 67.82
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 21.85
	WG04L03242		Side Blaster Asm				$ 34.94
	WG04A05119		Right Side Trim Tub   (Replaces: WG04L02600)			Immediately	$ 86.93
	WG04A05119		Left Side Trim Tub   (Replaces: WG04L02397)			Immediately	$ 86.93
	WG04F07122		Hose Elbow Drain			Immediately	$ 14.29
	WG04F10397		Active Diverter Asm Kit   (Replaces: WG04F07029)				$ 152.60
	WG04F07026		Sump Manifold				$ 72.06
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04A03031		Mg Inner Door Leak Kit				$ 275.43
	WW01A00722		Worm Gear Clamp   (Replaces: WG04A02196)				$ 12.71
	WG04A01811		Variable Speed Pump Kit			Immediately	$ 302.98
	WG04A01380		Bag Hardware Asm Kit				$ 36.53
	WG01A01600		Vis   (Replaces: WG04A01265)			Immediately	$ 9.53

    View Diagram in Separate Window       Print Part List
