View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

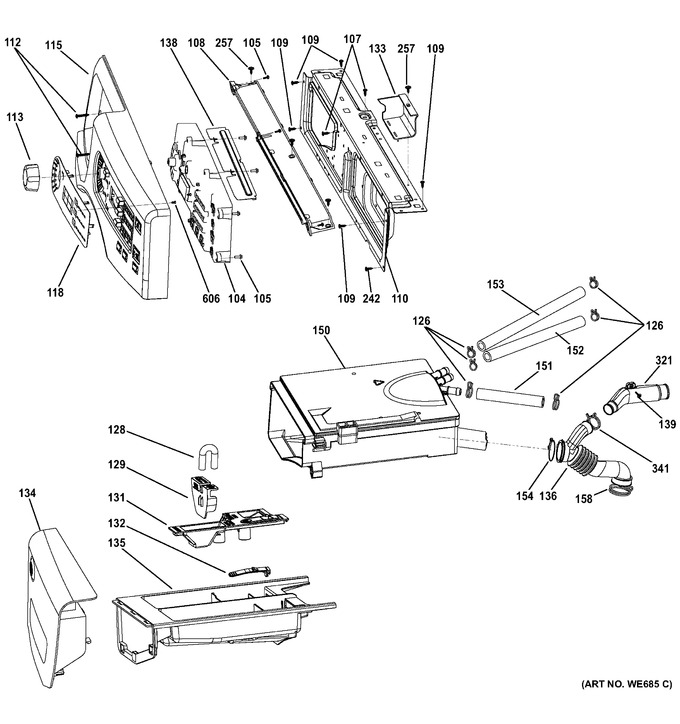

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WH12X20814 | Ui Board |
|
$ 658.74 | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 108 | WH44X21237 | Control Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2*13 |
|
- | |||||
| 110 | WH46X10272 | Front Top Bracket |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10061 | Select Cycle Knob |
|
- | |||||
| 115 | WH41X20909 | Control Panel Asm Ww |
|
- | |||||
| 118 | WH42X20910 | Display Trim |
|
- | |||||
| 126 | WH01X10324 | Inlet Pipe Clamp |
|
- | |||||
| 128 | WH41X10112 | Siphon_pipe |
|
- | |||||
| 129 | WH41X10138 | Liquid Detergent Insert |
|
- | |||||
| 131 | WG04F03755 | Softener Bleach Cover (Replaces: WH41X10155) |
|
$ 27.00 | |||||
| 132 | WG04F00344 | Drawer Latch Level (Replaces: WH01X10245) |
|
$ 4.17 | |||||
| 133 | WH44X10296 | Harness Cover |
|
- | |||||
| 134 | WH41X20911 | Dispenser Dwr Front Ww |
|
- | |||||
| 135 | WG04L02980 | Drawer (Replaces: WH41X10302) |
|
$ 132.60 | |||||
| 136 | WH41X10186 | Water Inlet Pipe |
|
- | |||||
| 138 | WH01X10667 | Flame Resistant Flap |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 150 | WH41X10303 | Main Box Sub |
|
- | |||||
| 151 | WH41X10156 | Main Inlet Water Hose |
|
- | |||||
| 152 | WH41X10157 | Bleach Inlet Water Hose |
|
- | |||||
| 153 | WH41X10158 | Hot Inlet Water Hose |
|
- | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 242 | WH02X10182 | Screw_st4.2*13 |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 321 | WH41X10189 | Hose - Vent |
|
- | |||||
| 341 | WH01X10275 | Pump_clamp |
|
- | |||||
| 606 | WH02X10355 | Screw St3.2*8 |
|
- | |||||
| WG04F07909 | Control Panel Asm Ww |
|
$ 327.11 | ||||||
| WG04F12336 | Pump (Replaces: WG04F07916) |
|
Immediately | $ 146.24 | |||||
| WG04F07920 | Gasket |
|
$ 469.04 | ||||||
| WG04L01235 | Liquid Detergent Insert |
|
$ 10.01 | ||||||
| WG04L02130 | Door Frame Handle Sub |
|
$ 236.19 | ||||||
| WG04F09450 | Motor Asm Kit (Replaces: WG04A03001) |
|
Immediately | $ 784.73 | |||||
| WG04L04502 | Door_lock |
|
Immediately | $ 226.96 | |||||
| WG04L04503 | Front Panel Ww |
|
$ 466.36 | ||||||
| WG04L04504 | Hinge |
|
$ 72.84 | ||||||
| WG04L04506 | Door Cover Sub |
|
$ 170.98 | ||||||
| WG04L02980 | Drawer |
|
$ 132.60 | ||||||
| WG04F00002 | Water Valve |
|
Immediately | $ 148.93 | |||||
| WG04F00344 | Latch Drawer Level |
|
$ 4.17 | ||||||
| WG04F02357 | Pipe Siphon |
|
$ 7.00 | ||||||
| WG04F03755 | Softener Bleach Cover |
|
$ 27.00 | ||||||
| WG04F07907 | Circuit Imprimﾉ |
|
Immediately | $ 777.94 |
