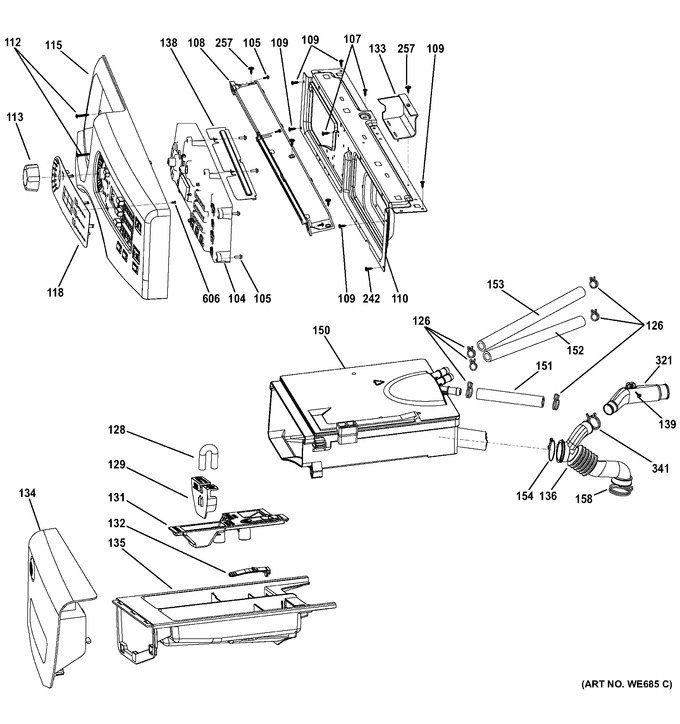

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WH12X20814 | Ui Board |
|
$ 658.74 | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 108 | WH44X21237 | Control Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2*13 |
|
- | |||||
| 110 | WH46X10272 | Front Top Bracket |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10061 | Select Cycle Knob |
|
- | |||||
| 115 | WH41X20815 | Control Panel Asm Ww |
|
- | |||||
| 118 | WH42X20816 | Display Trim |
|
- | |||||
| 126 | WH01X10324 | Inlet Pipe Clamp |
|
- | |||||
| 128 | WH41X10112 | Siphon_pipe |
|
- | |||||
| 129 | WH41X10138 | Liquid Detergent Insert |
|
- | |||||
| 131 | WG04F03755 | Softener Bleach Cover (Replaces: WH41X10155) |
|
$ 27.00 | |||||
| 132 | WG04F00344 | Drawer Latch Level (Replaces: WH01X10245) |
|
$ 4.17 | |||||
| 133 | WH44X10296 | Harness Cover |
|
- | |||||
| 134 | WH41X20817 | Dispenser Dwr Front Ww |
|
- | |||||
| 135 | WG04L02980 | Drawer (Replaces: WH41X10302) |
|
$ 132.60 | |||||
| 136 | WH41X10186 | Water Inlet Pipe |
|
- | |||||
| 138 | WH01X10667 | Flame Resistant Flap |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 150 | WH41X10303 | Main Box Sub |
|
- | |||||
| 151 | WH41X10156 | Main Inlet Water Hose |
|
- | |||||
| 152 | WH41X10157 | Bleach Inlet Water Hose |
|
- | |||||
| 153 | WH41X10158 | Hot Inlet Water Hose |
|
- | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 242 | WH02X10182 | Screw_st4.2*13 |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 321 | WH41X10189 | Hose - Vent |
|
- | |||||
| 341 | WH01X10275 | Pump_clamp |
|
- | |||||
| 606 | WH02X10355 | Screw St3.2*8 |
|
- | |||||
| WG04F03651 | Cabinet Rear Cover |
|
$ 75.97 | ||||||
| WG04F03583 | Inverter |
|
$ 328.14 | ||||||
| WG04F02358 | Inside Drain Hose |
|
$ 32.40 | ||||||
| WG04F02323 | Control Housing Sub |
|
$ 298.21 | ||||||
| WG04F01606 | Power Cord |
|
$ 63.84 | ||||||
| WG04F00643 | Outside Drain Hose |
|
$ 99.93 | ||||||
| WG04F00309 | Drain Hose Coupling |
|
$ 7.55 | ||||||
| WS01L12300 | Panneau En Verre De La Porte Asm. |
|
$ 189.96 | ||||||
| WG04F09450 | Drive_motor_sub (Replaces: WG04A03001) |
|
Immediately | $ 784.73 | |||||
| WG04A03000 | Drive Pulley Kit |
|
$ 148.86 | ||||||
| WG04A01704 | Screw St4*13 |
|
$ 7.99 | ||||||
| WG04A01273 | Washer Screw |
|
$ 4.66 | ||||||
| WG04A00796 | Emi_filter |
|
$ 135.71 | ||||||
| WG04A00128 | Nut M16 |
|
$ 10.82 | ||||||
| WG04F00002 | Water Valve |
|
Immediately | $ 148.93 | |||||
| WS01A01844 | Panneau De Commande Asm., Electronique |
|
Immediately | $ 168.33 | |||||
| WG04L04512 | Display Trim |
|
$ 121.71 | ||||||
| WG04L04510 | Courroie |
|
$ 79.32 | ||||||
| WG04L04508 | Cuve Avant |
|
$ 380.10 | ||||||
| WG04L04506 | Door Cover Sub |
|
$ 170.98 | ||||||
| WG04L04502 | Door Lock |
|
Immediately | $ 226.96 | |||||
| WG04L02980 | Drawer |
|
$ 132.60 | ||||||
| WG04L02681 | Top Panel Sub |
|
$ 213.17 | ||||||
| WG04L02156 | Poignee Et Cadre De La Porte |
|
$ 194.65 | ||||||
| WG04L01242 | Select_cycle_knob |
|
$ 53.99 | ||||||
| WG04L00177 | Door Lock |
|
Immediately | $ 253.22 | |||||
| WG04L00147 | Door Glass |
|
$ 284.52 | ||||||
| WG04F09450 | Kit Motor |
|
Immediately | $ 784.73 | |||||
| WG04F07931 | Wire Harness |
|
$ 322.01 | ||||||
| WG04F07930 | Devant Du Distributeur (ww) |
|
$ 116.91 | ||||||
| WG04F07929 | Control Panel Asm Ww |
|
$ 372.48 | ||||||
| WG04F07926 | Boyau De Vidance |
|
$ 141.83 | ||||||
| WG04F07923 | Cuve Arr. Asm. |
|
$ 1,803.61 | ||||||
| WG04F07922 | Joint Centrale De La Cuve |
|
$ 73.24 | ||||||
| WG04F07921 | Basket Asm |
|
$ 1,873.93 | ||||||
| WG04F07920 | Gasket |
|
$ 469.04 | ||||||
| WG04F07919 | Pump_filter |
|
$ 127.92 | ||||||
| WG04F07917 | Damper |
|
Immediately | $ 175.77 | |||||
| WG04F12336 | Pompe (Replaces: WG04F07916) |
|
Immediately | $ 146.24 | |||||
| WG04F07915 | Door_plunger |
|
$ 39.70 | ||||||
| WG04F07913 | Interrupteur |
|
Immediately | $ 88.99 | |||||
| WG04F07912 | Suspension Spring |
|
$ 68.02 | ||||||
| WG04F07907 | Circuit ImprimÉ |
|
Immediately | $ 777.94 | |||||
| WG04F06613 | Assemblage |
|
$ 106.36 | ||||||
| WG04F04381 | U Shape Drain Hose |
|
$ 8.34 | ||||||
| WG04F03796 | Ui Board |
|
Immediately | $ 825.88 |
