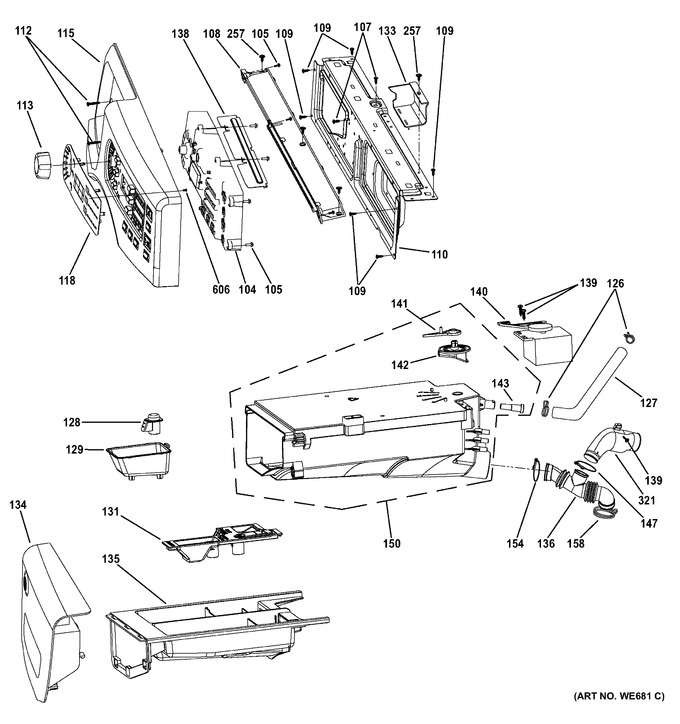

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WH12X20541 | Ui Board |
|
- | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 108 | WH16X10164 | Ctrl Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2*13 |
|
- | |||||
| 110 | WH46X10272 | Front Top Bracket |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10061 | Select Cycle Knob |
|
- | |||||
| 115 | WH42X10940 | Control Panel |
|
- | |||||
| 118 | WH42X10941 | Display Trim |
|
- | |||||
| 126 | WH01X10324 | Inlet Pipe Clamp |
|
- | |||||
| 127 | WH41X10305 | Inlet Water Hose 1 |
|
- | |||||
| 128 | WH47X20538 | Detergent Box Siphon Cap |
|
- | |||||
| 129 | WH47X20539 | Detergent Box |
|
- | |||||
| 131 | WH41X10181 | Softener Bleach Cover |
|
- | |||||
| 133 | WH44X10296 | Harness Cover |
|
- | |||||
| 134 | WH41X10316 | Handle Sub |
|
- | |||||
| 135 | WH47X20634 | Drawer Dispenser |
|
- | |||||
| 136 | WH41X10257 | Water Inlet Pipe |
|
- | |||||
| 138 | WH01X10667 | Flame Resistant Flap |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 140 | WG02F04592 | Diverter (Replaces: WH43X10059) |
|
Immediately | $ 165.97 | ||||
| 141 | WH01X10247 | Diverter_indicator |
|
- | |||||
| 142 | WH01X10376 | Diverter Lever Plate |
|
- | |||||
| 143 | WH41X10121 | Dispenser_inlet |
|
- | |||||
| 147 | WH02X10341 | Water Inlet Pipe Clamp |
|
- | |||||
| 150 | WH41X10307 | Main Box Sub |
|
- | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 321 | WH41X10249 | Hose-vent |
|
- | |||||
| 606 | WH02X10355 | Screw St3.2*8 |
|
- | |||||
| WG04F03583 | Inverter |
|
$ 295.33 | ||||||
| WG04F03796 | Ui Board |
|
Immediately | $ 743.29 | |||||
| WG04F00752 | Rondelle |
|
$ 12.19 | ||||||
| WG04F09450 | Motor |
|
Immediately | $ 706.26 | |||||
| WG04L00177 | Door Lock |
|
Immediately | $ 227.90 | |||||
| WG04F03817 | Gasket |
|
$ 259.21 | ||||||
| WG04F02295 | Courroie |
|
Immediately | $ 154.53 | |||||
| WG04F02335 | Water Valve |
|
$ 186.74 | ||||||
| WG04F02346 | Moteur Asm. |
|
$ 670.91 | ||||||
| WG04F12336 | Pump (Replaces: WG04F02348) |
|
Immediately | $ 131.62 |
