SELECT A DIAGRAM
1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door

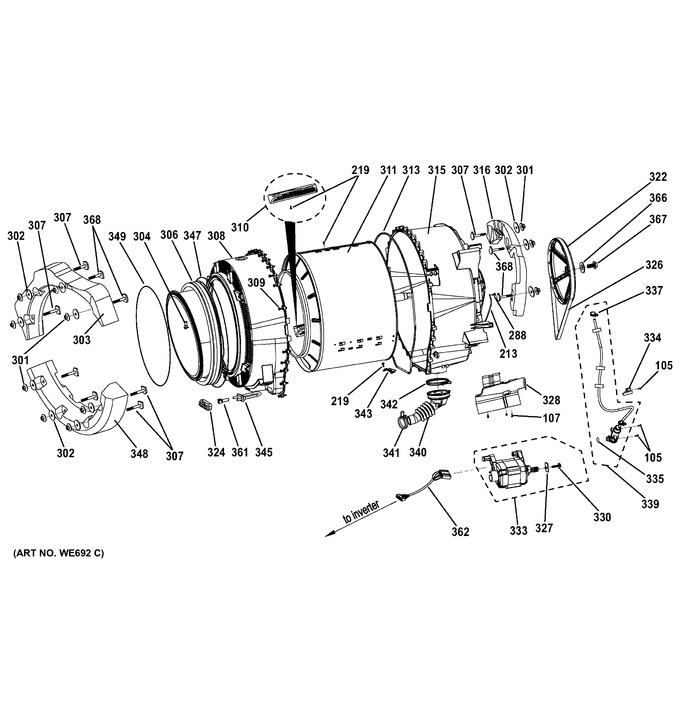

4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 213 | WH19X20899 | Wire Harness |
|
- | |||||
| 219 | WH02X10189 | Screw_st4*13 |
|
- | |||||
| 288 | WH02X10234 | Screw M5*12 |
|
- | |||||
| 301 | WH02X10204 | Nut_m8 |
|
- | |||||
| 302 | WH02X10205 | Washer |
|
- | |||||
| 303 | WH01X10556 | Counterweight - Frnt |
|
- | |||||
| 304 | WH08X20921 | Gasket Nozzle |
|
- | |||||
| 306 | WH08X20906 | Gasket |
|
- | |||||
| 307 | WH02X10207 | Bolt M8*48 |
|
- | |||||
| 308 | WH45X20907 | Front Tub |
|
- | |||||
| 309 | WH02X10208 | Screw_st6*35 |
|
- | |||||
| 310 | WH16X10128 | Baffle |
|
- | |||||
| 311 | WH45X10145 | Basket Asm 5.1 Cu Ft |
|
- | |||||
| 313 | WG04F02296 | Tub Seal (Replaces: WH08X10054) |
|
$ 28.09 | |||||
| 315 | WH45X10096 | Rear Tub Asm |
|
- | |||||
| 316 | WH01X10521 | Counterweight-rear |
|
- | |||||
| 322 | WG04A00752 | Drive Pulley Kit (Replaces: WH07X10022) |
|
$ 189.48 | |||||
| 324 | WH44X10264 | Cover - Tub Heater |
|
- | |||||
| 326 | WG04F02295 | Driving Belt (Replaces: WH08X10050) |
|
$ 171.70 | |||||
| 327 | WH02X10212 | Motor_washer |
|
- | |||||
| 328 | WH16X10131 | Motor Shield |
|
- | |||||
| 330 | WH02X10213 | Flange_bolt_m8*35 |
|
- | |||||
| 333 | WG04F02346 | Motor Asm Kit (Replaces: WH20X10078) |
|
$ 745.45 | |||||
| 334 | WH01X10396 | Support- Pressure Hose |
|
- | |||||
| 335 | WH01X10397 | Air Chamber Ring |
|
- | |||||
| 337 | WH01X10273 | Pressure_hose_clamp |
|
- | |||||
| 339 | WH41X20908 | Air Chamber Asm |
|
- | |||||
| 340 | WH41X10250 | Drain Hose |
|
- | |||||
| 341 | WH01X10275 | Pump_clamp |
|
- | |||||
| 342 | WH01X10276 | Tub Drain Hose Clamp |
|
- | |||||
| 343 | WH16X10081 | Heater Support |
|
- | |||||
| 345 | WH12X10309 | Heater |
|
- | |||||
| 347 | WH08X10055 | Gasket Inside Clamp |
|
- | |||||
| 348 | WH01X10519 | Counterweight-frnt/btm |
|
- | |||||
| 349 | WG04L01218 | Gasket Outside Clamp (Replaces: WH08X10056) |
|
$ 30.87 | |||||
| 361 | WG04F02318 | Heater Thermistor (Replaces: WH12X10310) |
|
$ 79.46 | |||||
| 362 | WH19X10070 | Harness - Motor |
|
- | |||||
| 366 | WH02X10337 | Washer 34x12.5x3.5 Mm |
|
- | |||||
| 367 | WH02X10334 | Flange Bolt M12*25 |
|
- | |||||
| 368 | WH02X10333 | Bolt M8*38 - Frnt Cntrwg |
|
- | |||||
| WG04F07919 | Pump_filter |
|
$ 127.92 | ||||||
| WG04F09677 | Circuit Imprimﾉ (Replaces: WG04F07933) |
|
Immediately | $ 533.39 | |||||
| WG04F07941 | Pressure Switch |
|
$ 128.97 | ||||||
| WG04F07943 | Inverseur |
|
$ 668.04 | ||||||
| WG04F07945 | Gasket |
|
Immediately | $ 538.61 | |||||
| WG04F07946 | Cuve |
|
$ 483.44 | ||||||
| WG04F07947 | Basket Asm 5.1 Cu Ft |
|
$ 1,258.67 | ||||||
| WG04F09606 | Cuve Arriere |
|
$ 795.35 | ||||||
| WG04L01219 | Glass - Door |
|
$ 213.82 | ||||||
| WG02F04592 | Assemblage |
|
Immediately | $ 184.41 | |||||
| WG04L04502 | Door Lock |
|
Immediately | $ 226.96 | |||||
| WG04L04515 | Front Panel Ww |
|
$ 346.48 | ||||||
| WG04L04517 | Hinge Cover |
|
$ 65.70 | ||||||
| WG04L04518 | Hinge |
|
$ 101.76 | ||||||
| WG04L04519 | Door Cover Sub |
|
$ 173.75 | ||||||
| WG04L04520 | Cadre De La Porte |
|
$ 594.38 | ||||||
| WG04L04521 | Hinge Leaf |
|
$ 43.37 | ||||||
| WW02L00037 | Door Latch |
|
Immediately | $ 11.99 | |||||
| WG04L02681 | Top Panel Sub |
|
$ 213.17 | ||||||
| WG04A01279 | Screw St4y16 |
|
$ 4.85 | ||||||
| WG04A01683 | Screw M5*16 |
|
$ 9.53 | ||||||
| WG04F00002 | Water Valve |
|
Immediately | $ 148.93 | |||||
| WG04F02296 | Tub Seal |
|
$ 28.09 | ||||||
| WG04F02346 | Moteur Asm. |
|
$ 745.45 | ||||||
| WG04F02372 | Cuve Arr. Asm. |
|
$ 729.60 | ||||||
| WG04F12336 | Pompe (Replaces: WG04F07916) |
|
Immediately | $ 146.24 |
