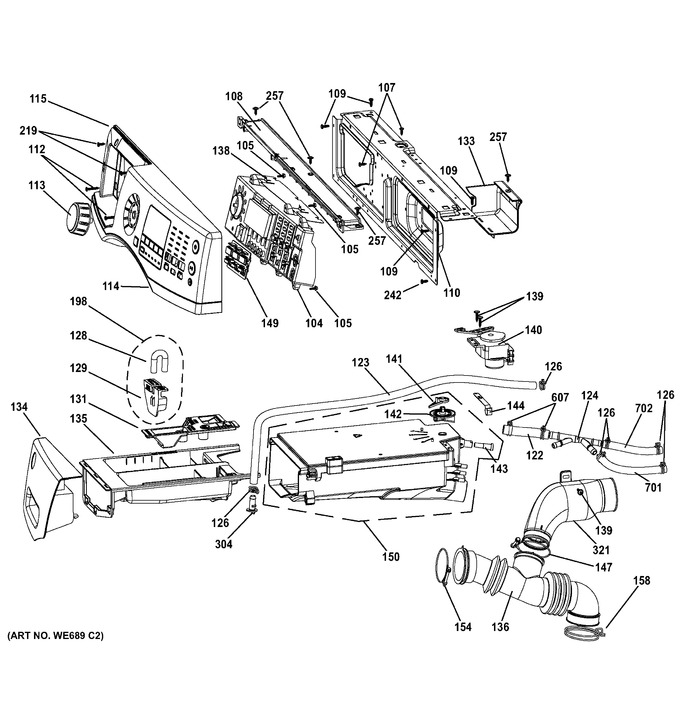

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WH12X20874 | Ui Board |
|
- | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 108 | WH44X21237 | Control Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2*13 |
|
- | |||||
| 110 | WH46X10272 | Front Top Bracket |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X20875 | Select Cycle Knob |
|
- | |||||
| 114 | WH42X23214 | Cosmetic Strip |
|
- | |||||
| 115 | WH18X21554 | Control Panel Asm |
|
- | |||||
| 122 | WH41X20914 | Inlet Water Hose 1 |
|
- | |||||
| 123 | WH41X20915 | Spray Hose |
|
- | |||||
| 124 | WH41X20916 | 3 Way Pipe |
|
- | |||||
| 126 | WH01X10324 | Inlet Pipe Clamp |
|
- | |||||
| 128 | WH41X10179 | Siphon Pipe |
|
- | |||||
| 129 | WH41X10264 | Liquid Detergent Insert |
|
- | |||||
| 131 | WH41X10181 | Softener Bleach Cover |
|
- | |||||
| 133 | WH44X10296 | Harness Cover |
|
- | |||||
| 134 | WH42X21555 | Handle Sub |
|
- | |||||
| 135 | WH41X10185 | Drawer Dispenser |
|
- | |||||
| 136 | WH41X10257 | Water Inlet Pipe |
|
- | |||||
| 138 | WH01X20896 | Flame Resistant Flap |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 140 | WG02F04592 | Diverter (Replaces: WH43X10059) |
|
Immediately | $ 184.41 | ||||
| 141 | WH01X10247 | Diverter_indicator |
|
- | |||||
| 142 | WH01X10376 | Diverter Lever Plate |
|
- | |||||
| 143 | WH41X10121 | Dispenser_inlet |
|
- | |||||
| 144 | WH01X10249 | Dispenser_clamp |
|
- | |||||
| 147 | WH02X10341 | Water Inlet Pipe Clamp |
|
- | |||||
| 149 | WH11X21556 | Temp Button Pipe Sub |
|
- | |||||
| 150 | WH41X10307 | Main Box Sub |
|
- | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 198 | WH49X21455 | Insert & Siphon Pipe Kit |
|
- | |||||
| 219 | WH02X10189 | Screw_st4*13 |
|
- | |||||
| 242 | WH02X10182 | Screw_st4.2*13 |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 304 | WH08X20921 | Gasket Nozzle |
|
- | |||||
| 321 | WH41X10249 | Hose-vent |
|
- | |||||
| 607 | WH01X10244 | 3_way_pipe_clamp |
|
- | |||||
| 701 | WH41X20922 | Hot Water Out Hose |
|
- | |||||
| 702 | WH41X20923 | Cold Water Out Hose |
|
- |
