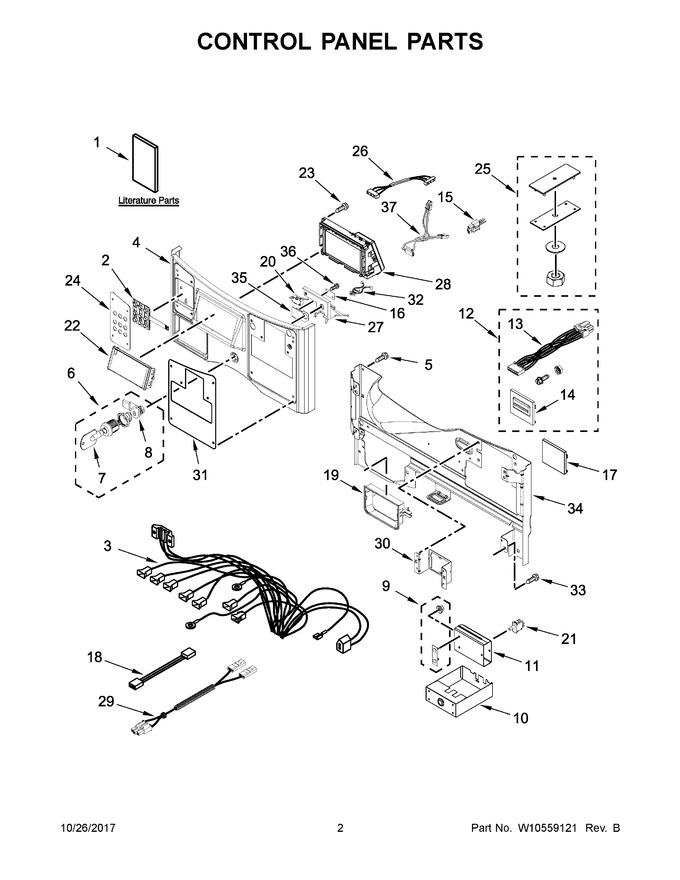

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335466 | Instructions, Installation |
|
- | |||||
| 2 | WPW10198198 | Assembly, Button Set (Replaces: W10198198) |
|
$ 243.86 | |||||
| 3 | W10555301 | Harness, Main Mle20 Pd/pn Models |
|
- | |||||
| 4 | W11181684 | Panel, Console (Replaces: W10198207) |
|
- | |||||
| 5 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 6 | W11231586 | Lock, Service & Programming (Replaces: W10198223) |
|
- | |||||
| 7 | WPW10114740 | 777 Lock And Key, Complete (Replaces: W10114740) |
|
$ 137.49 | |||||
| 8 | W10233256 | Cam, Locking Iec |
|
$ 77.22 | |||||
| 9 | W10159907 | Assembly, Mounting Strap Weld |
|
- | |||||
| 10 | W11204019 | Box, Coin (Replaces: W10133248) |
|
$ 163.85 | |||||
| 11 | W11204020 | Assembly, Vault Body (Replaces: W10133258) |
|
$ 421.72 | |||||
| 12 | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 78.10 | |||||
| 13 | WPW10239515 | Harness, Card Reader (Replaces: W10239515) |
|
$ 155.18 | |||||
| 14 | WPW10198367 | Bezel (Replaces: W10198367) |
|
$ 24.53 | |||||
| 15 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 16 | W10151156 | Shield, Sensor Switch |
|
- | |||||
| 17 | W10198366 | Cover Pd/pn |
|
- | |||||
| 18 | W10342230 | Cable Set, Ui To Ccu Communication |
|
- | |||||
| 19 | W10198345 | Collar, Dispenser |
|
- | |||||
| 20 | W10133281 | Switch, Service Access |
|
- | |||||
| 21 | W11123448 | Switch, Vault Service Door (Replaces: W10133289) |
|
- | |||||
| 22 | W10198390 | Display, Window |
|
$ 86.45 | |||||
| 23 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 24 | W10198284 | Buttons, Fascia |
|
$ 195.55 | |||||
| 25 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 26 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 27 | W10198375 | Console, Support |
|
- | |||||
| 28 | W10827410 | Assembly, Techbox Pd Models (Replaces: W10785153) |
|
Immediately | $ 953.99 | ||||
| 29 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 30 | W10198322 | Bracket Pd Models |
|
- | |||||
| 31 | W10198334 | Fascia Pd Models |
|
$ 129.18 | |||||
| 32 | W10129069 | Clip, Wire |
|
- | |||||
| 33 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 34 | W11200173 | Bracket, Console (Replaces: W10198369) |
|
- | |||||
| 35 | W10160652 | Bracket-switch |
|
- | |||||
| 36 | 3400408 | Screw |
|
- | |||||
| 37 | W10242896 | Wire Harness, Sensor Switch |
|
- | |||||
| 1A | W10404629 | Sheet, Tech |
|
- | |||||
| 28A | W10827636 | Assembly, Techbox Pn Models (Replaces: W10785154) |
|
$ 270.26 | |||||
| 30A | WPW10198323 | Bracket Pn Models (Replaces: W10198323) |
|
$ 25.90 | |||||
| 31A | W10198336 | Fascia Pn Models |
|
$ 283.20 | |||||
| 3A | W10555304 | Harness, Main Mlg20 Pd Models |
|
- |
