01 - Cover Sheet

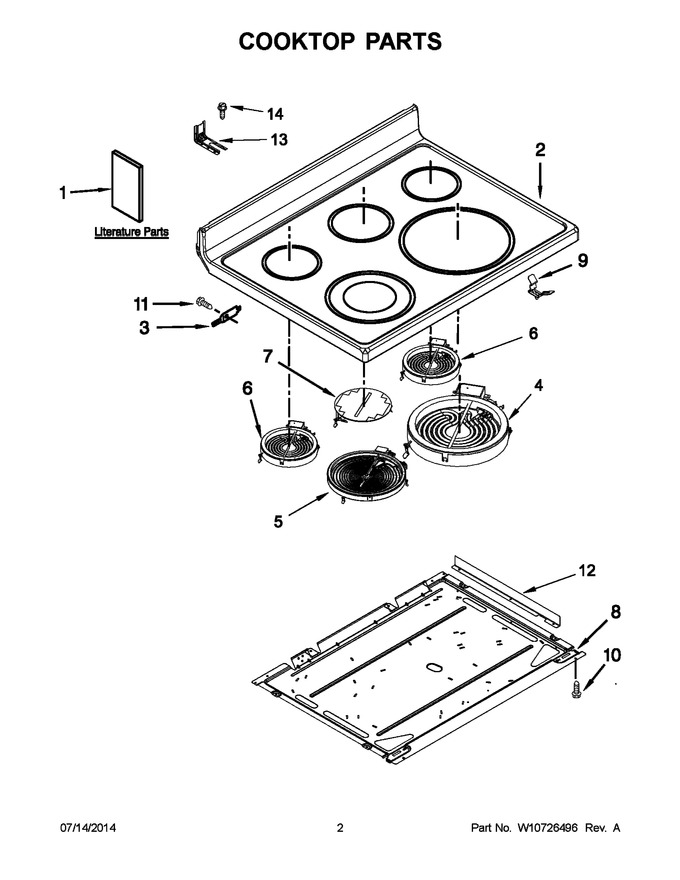

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10667173 | Use And Care Guide |
|
- | |||||
| 2 | W10691697 | Cooktop (white) (Replaces: W10655914) |
|
$ 590.94 | |||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 4 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 341.96 | ||||
| 5 | WPW10535150 | Element (1000/2000w) (left Front) (Replaces: W10535150) |
|
Immediately | $ 386.10 | ||||
| 6 | W11171119 | Element (1200w) (right Rear And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 7 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 132.95 | |||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 12 | W10348913 | Bracket, L-bridge |
|
- | |||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 14 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10667169 | Tech Sheet, English |
|
- | |||||
| 1B | W10667176 | Tech Sheet, French |
|
- | |||||
| 1C | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1D | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1E | W10403812 | Instructions, Installation |
|
- | |||||
| 1F | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2A | W10691698 | Cooktop (black) (Replaces: W10655916) |
|
Immediately | $ 590.58 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11188421 | Harness, Wire (cooktop Right) (Replaces: W10349696) |
|
Immediately | $ 214.26 | ||||
| NI | W11188418 | Harness, Cooktop Left (Replaces: W10349682) |
|
$ 223.37 | |||||
| NI | W11188460 | Harness, Main (Replaces: W10688250) |
|
$ 184.05 | |||||
| NI | W11212183 | Harness, Sensor (Replaces: W10349640) |
|
$ 235.64 | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 117.26 | |||||
| NI | W10520313 | Harness, Warming Drawer |
|
$ 29.60 | |||||
| NI | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
