View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

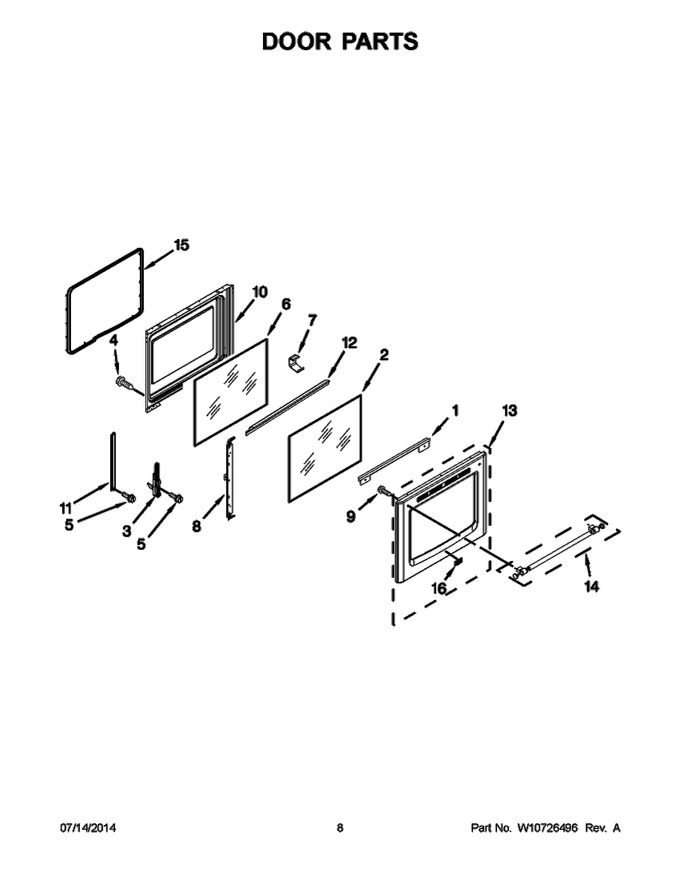

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330075 | Trim, Vent (white) |
|
$ 71.78 | |||||
| 2 | W10615599 | Glass, Outer |
|
$ 118.66 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10300487 | Glass, Inner (double Coated) (Replaces: W10300487) |
|
$ 296.96 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 9 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 13 | W10655831 | Skin, Door (white) |
|
$ 252.82 | |||||
| 14 | WPW10665831 | Handle, Assembly (stainless) (Replaces: W10665831) |
|
$ 234.70 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 16 | W10911300 | Badge (Replaces: W10636267) |
|
$ 80.51 | |||||
| 13A | W10655834 | Skin, Door (black) |
|
$ 248.78 | |||||
| 13B | WPW10655838 | Skin, Door (stainless) (Replaces: W10655838) |
|
Immediately | $ 373.36 | ||||
| 1A | W10339814 | Trim, Vent (black) |
|
$ 139.33 |
