SELECT A DIAGRAM

01 - Cover Sheet

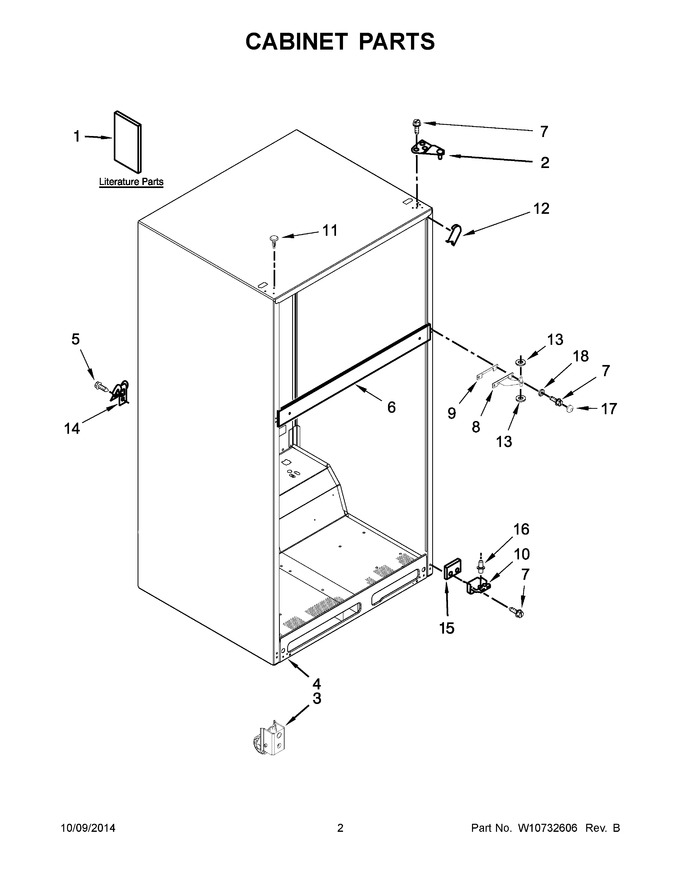

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10652633		Service & Wiring Sheet		Appelez-nous	-
2	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 118.10
4	N/P		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
6	N/P		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	WP2166037		Assembly, Hinge (center)   (Replaces: 2166086)				$ 85.08
9	2166043		Shim, Hinge Center (white)				$ 69.76
10	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 80.00
11	WPW10520304		Hole Plug (white)   (Replaces: W10520304)			Immediately	$ 19.22
12	W10859322		Filler, Wrapper (white)   (Replaces: 2166003)				$ 8.09
13	WP487802		Washer   (Replaces: 487802)			Immediately	$ 7.91
14	549193		Clamp, Power Cord				$ 14.06
15	WP2201567		Shim, Hinge (bottom)   (Replaces: 2201567)			Immediately	$ 8.16
16	WP2325483		Pin, Hinge (bottom)   (Replaces: 2325483)			Immediately	$ 7.55
17	W10846529		Dome Cap (white)   (Replaces: W10674771)			Immediately	$ 19.82
18	W10847959		Dome Cap, Washer   (Replaces: W10674773)				$ 11.27
11A	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 19.18
12A	W11500943		Filler, Wrapper (black)   (Replaces: 2215384)				$ 7.98
17A	W10853677		Dome Cap (black)   (Replaces: W10679135)				$ 19.89
1A	W10723054		Use And Care Guide		Appelez-nous	-
1B	W10657301		Energy Label		Appelez-nous	-
9A	2215385		Shim, Hinge Center (black)				$ 91.34

    View Diagram in Separate Window       Print Part List
